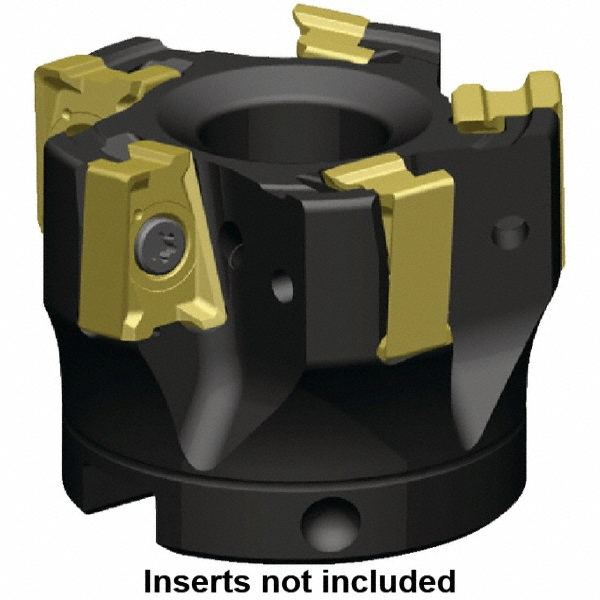

Takes 7 Inserts, 0° Lead Angle, 50mm High, Series F2010-B2-P2903-2R

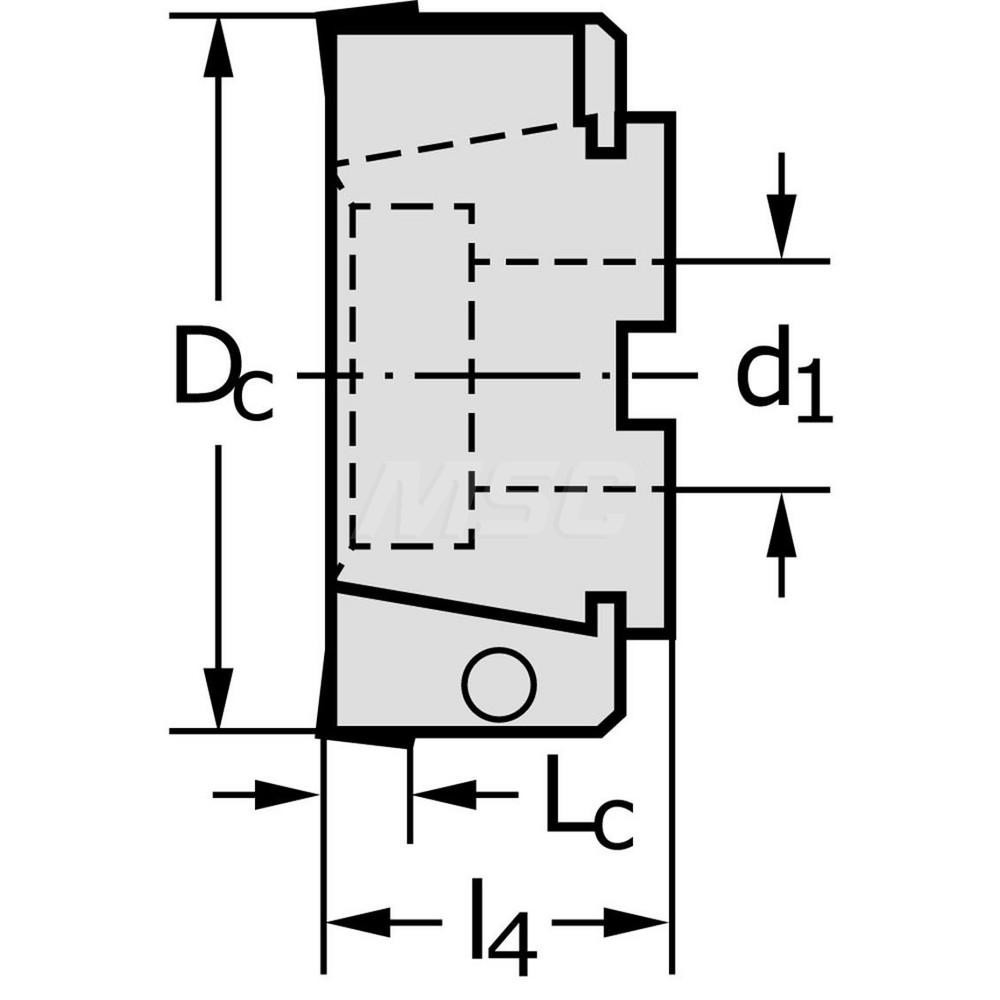

| Maximum Cutting Diameter (Decimal Inch) | 3.9370 |
|---|---|
| Maximum Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2600 |
| Cutter Style | F2010 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | F2010-B2-P2903-2R |
| Overall Height (Decimal Inch) | 1.9690 |
| Tool Application | Facing |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | S; M |
| Standards | ISO |
| Cutting Edge Length (Decimal Inch) | 0.3540 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
| Country of Origin | Germany |
| MSC Number | MSC# 47292818 |
