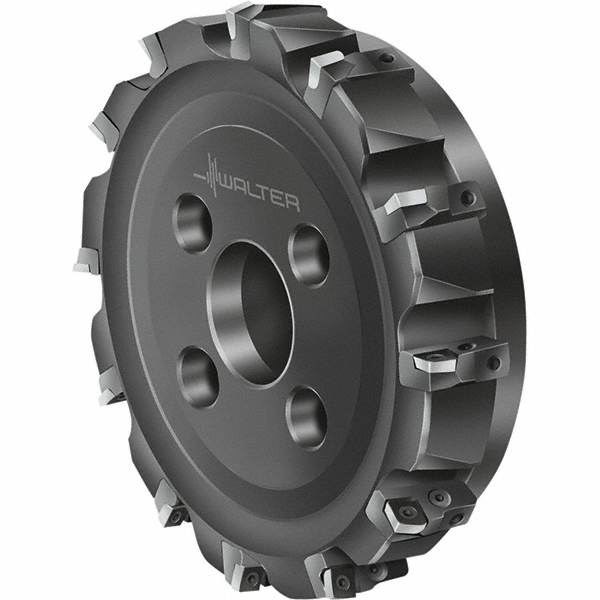

Takes 12 Inserts, 0° Lead Angle, 63mm High, Series F2010-B3-P2903-2R
| Maximum Cutting Diameter (Decimal Inch) | 7.8740 |
|---|---|
| Maximum Cutting Diameter (mm) | 200.00 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3620 |
| Cutter Style | F2010 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | F2010-B3-P2903-2R |
| Overall Height (Decimal Inch) | 2.4800 |
| Tool Application | Facing |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Hard Material; Stainless Steel |
| Secondary Workpiece Material Code | H; M |
| Standards | ISO |
| Cutting Edge Length (Decimal Inch) | 0.3540 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
| Country of Origin | Germany |
| MSC Number | MSC# 47292792 |
