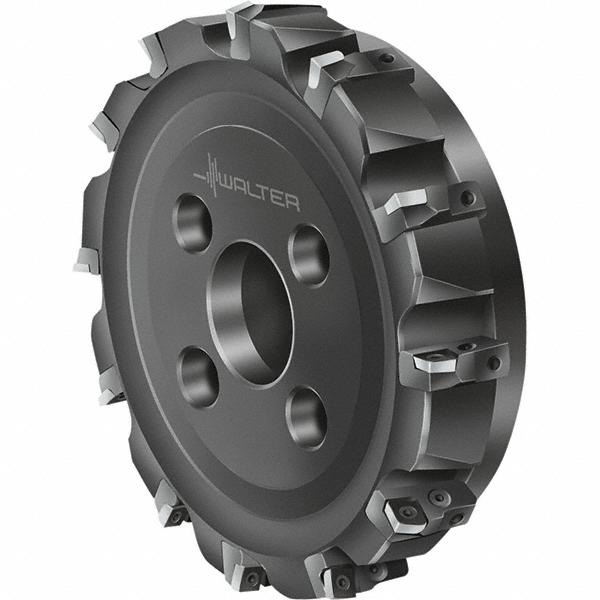

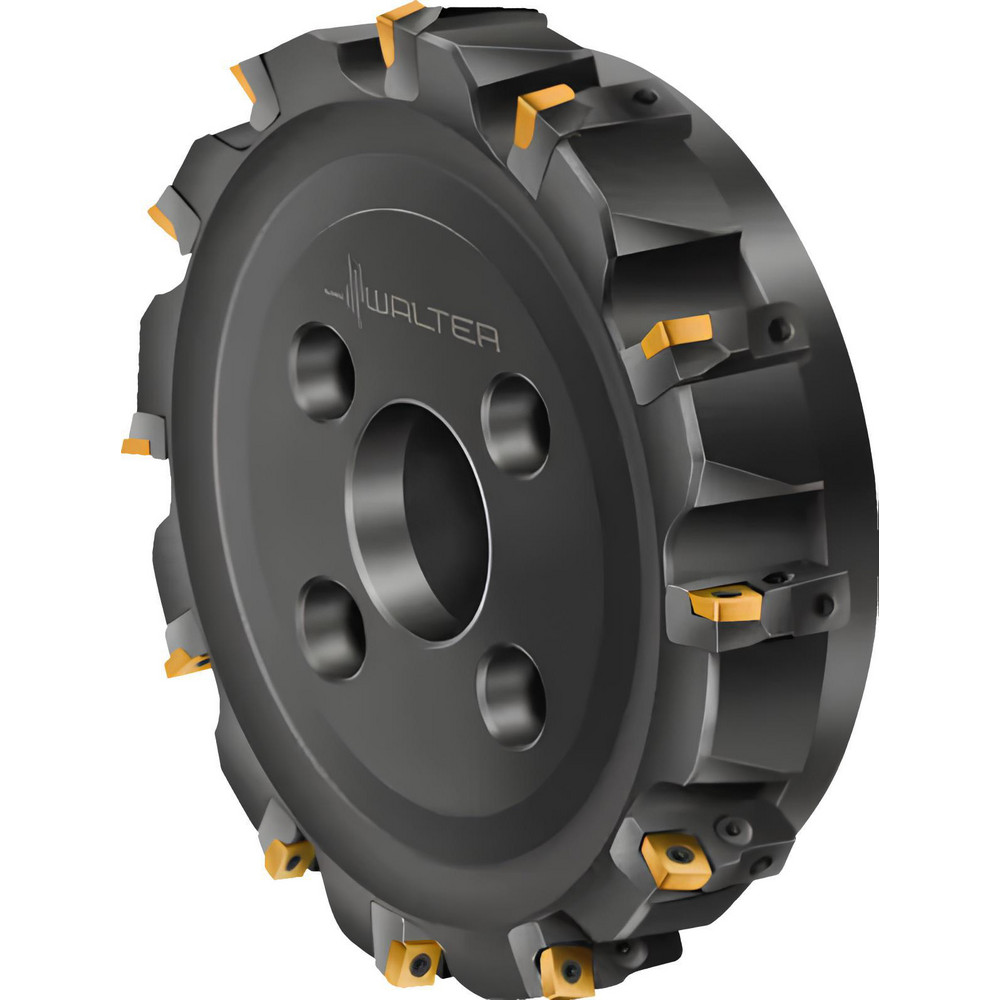

Takes 12 Inserts, 0° Lead Angle, 63mm High, Series F2010-B3-LNHU09

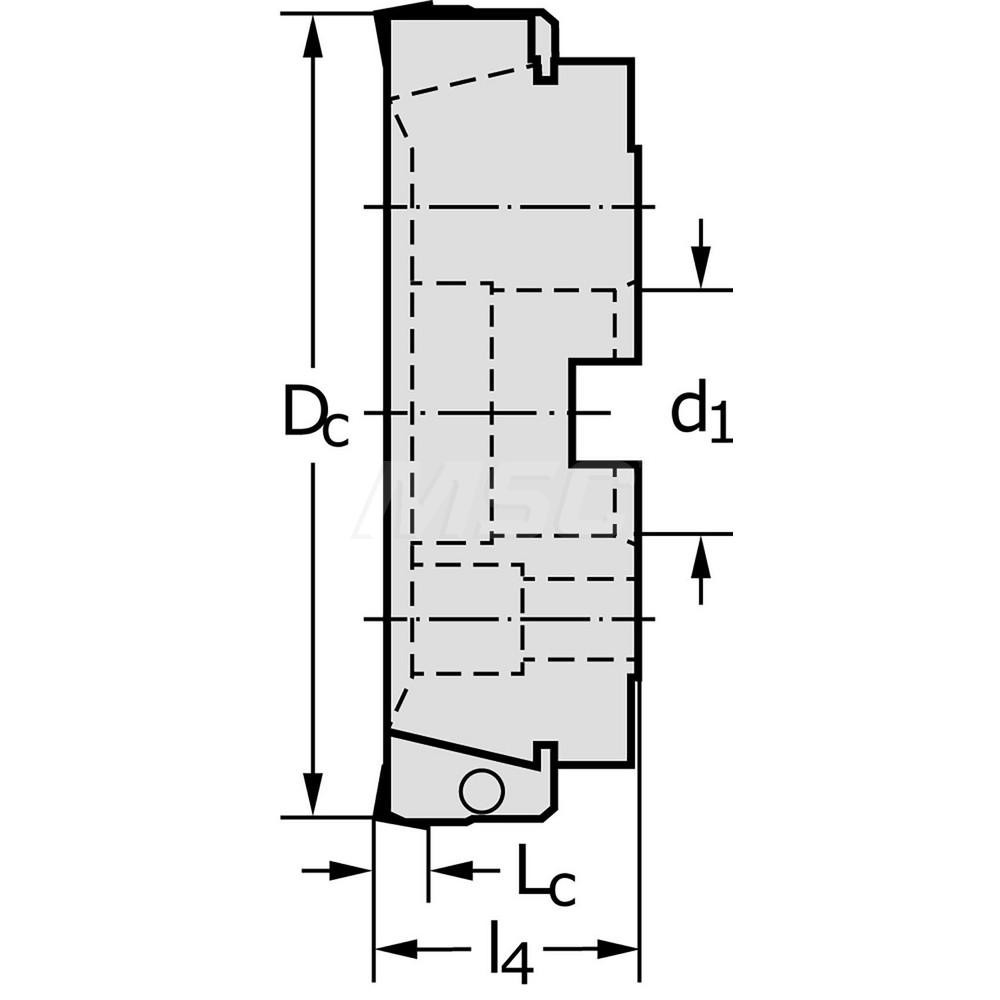

| Maximum Cutting Diameter (Decimal Inch) | 9.8430 |
|---|---|
| Maximum Cutting Diameter (mm) | 250.00 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3620 |
| Cutter Style | F2010 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | F2010-B3-LNHU09 |
| Overall Height (Decimal Inch) | 2.4800 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Universal |
| Secondary Workpiece Material Code | S; H; M; O |
| Standards | ISO |
| Cutting Edge Length (Decimal Inch) | 0.3150 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
| Country of Origin | Netherlands |
| MSC Number | MSC# 47292156 |
