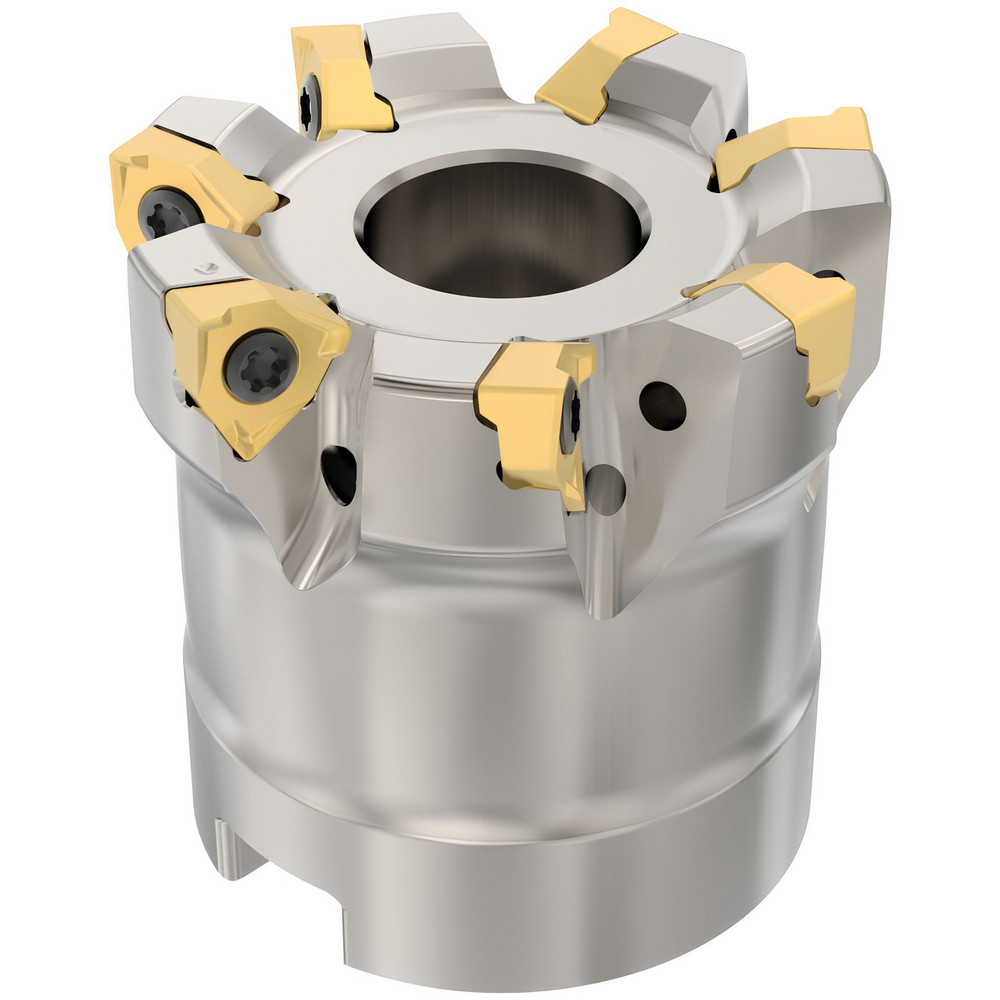

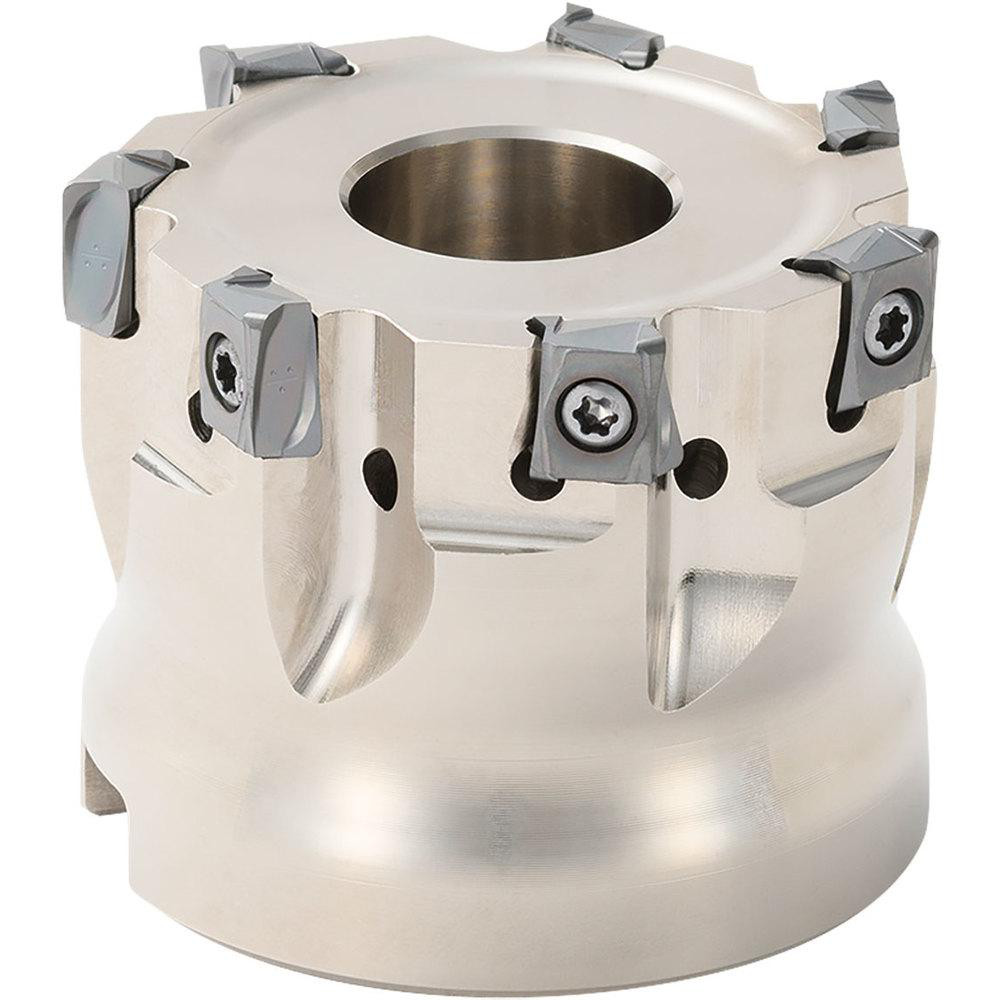

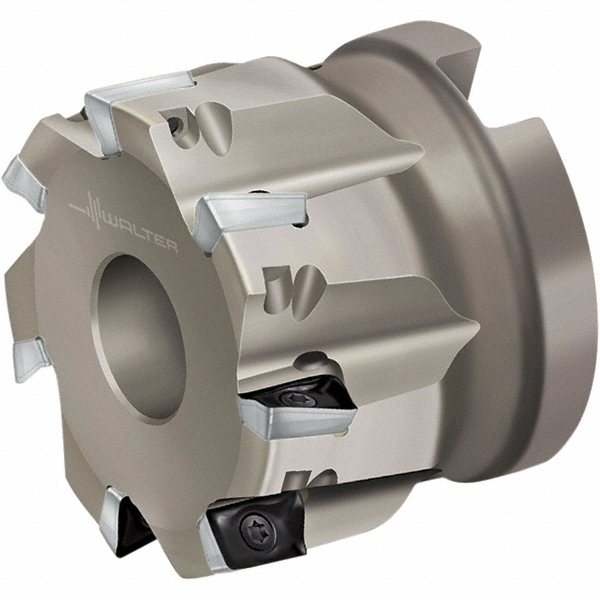

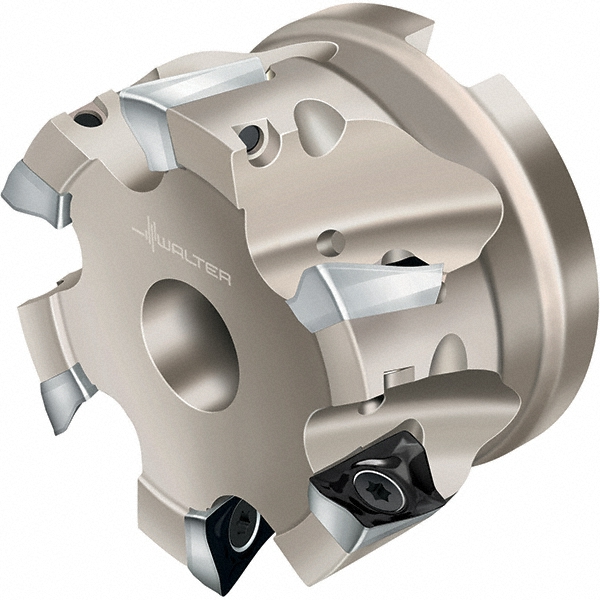

Takes 6 Inserts, 90° Lead Angle, 40mm High, LN.. 0904.. Insert Style, Through Coolant

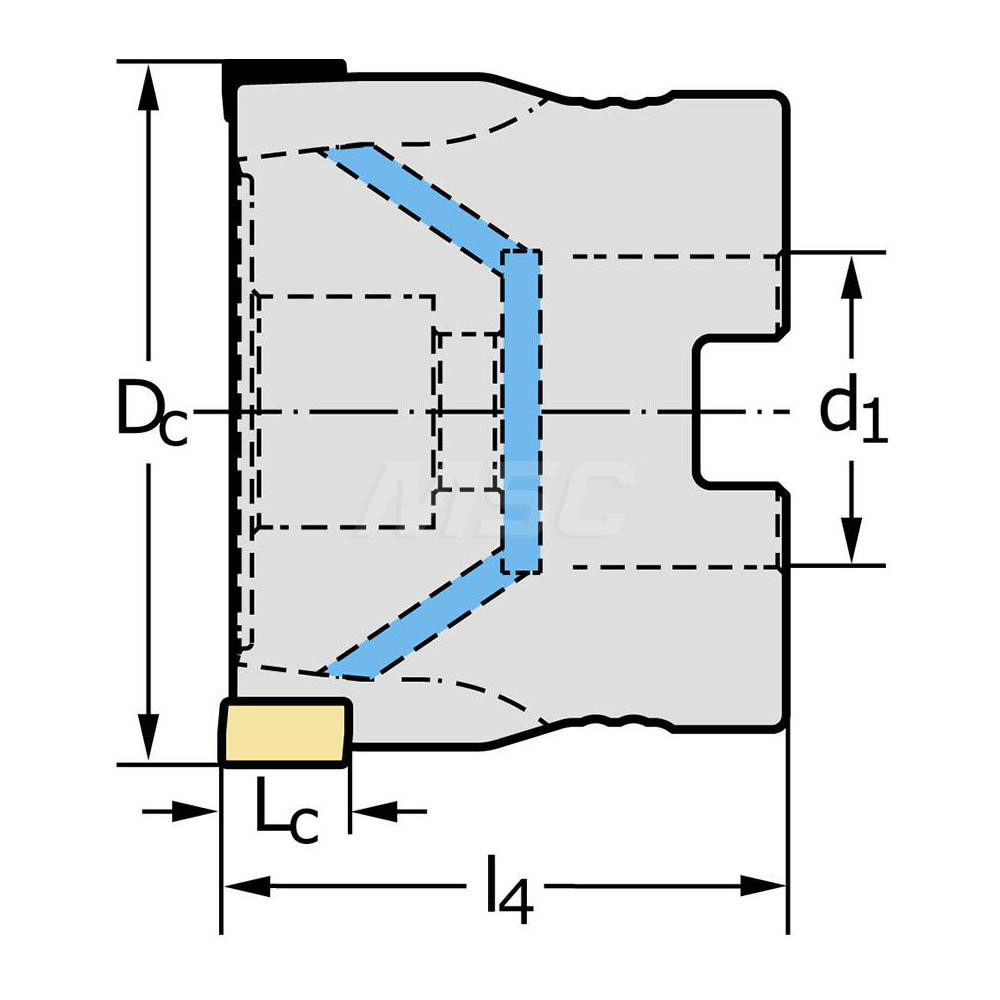

| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
|---|---|
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Compatible Insert Size Code | LN 0904 |
| Cutter Style | F5041 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |

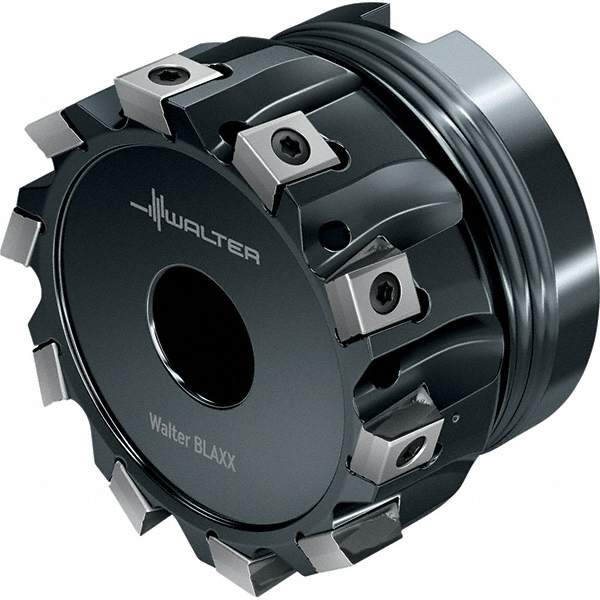

| Series | Blaxx |
| Overall Height (Decimal Inch) | 1.5748 |
| Keyway Width (Inch) | 4 |
| Keyway Width (mm) | 4.00 |
| Keyway Width (Decimal Inch) | 0.1575 |
| Tool Application | Facing; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H; O |
| Standards | ISO |
| Minimum Insert Radius (Decimal Inch) | 0.0157 |
| Complete Insert Compatibility | LNHU 090404R-L85T; LNHU 090416R-L55T; LNHU 090408R-L55T; LNHU 090404R-L55T; LNHU 090412R-L55T; LNHU 090420R-L55T |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Turkey |
| MSC Number | MSC# 53052254 |
