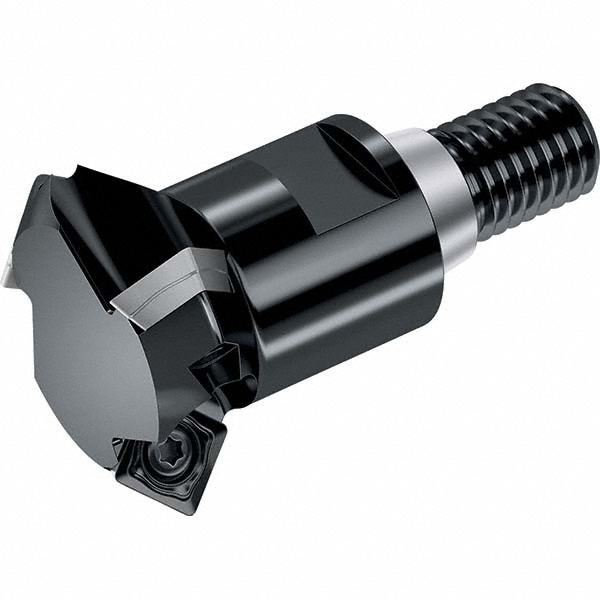

Takes 3 Inserts, SDMT09T308 Insert Style, AK500 Toolholder, 35mm OAL, 0.197" Max Depth of Cut

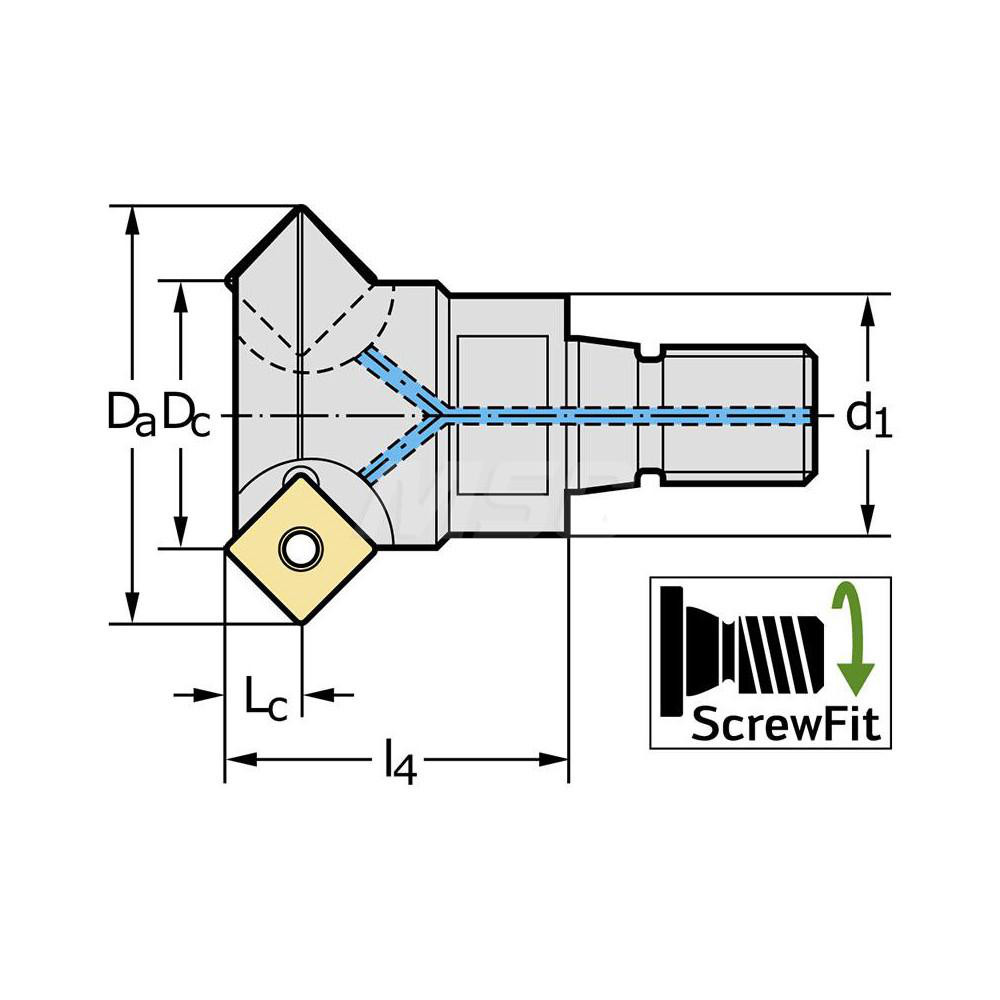

| Cutting Diameter (Decimal Inch) | 0.9843 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.9843 |
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 5.00 |
| Compatible Insert Size Code | SDMT09T308 |
| Number Of Cutter Inserts | 3 |
| Insert Style | SDMT09T308 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 35.00 |
| Toolholder Style | AK500 |
| Modular Connection Size | T22 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Standards | ISO:ANSI |
| UNSPSC Code | 23291600 |
| End Mill Material | Tool Steel |
| Coolant Through | Yes |
| Included Angle Degree | 45 |
| Shank Type | Modular Connection |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 58270950 |
