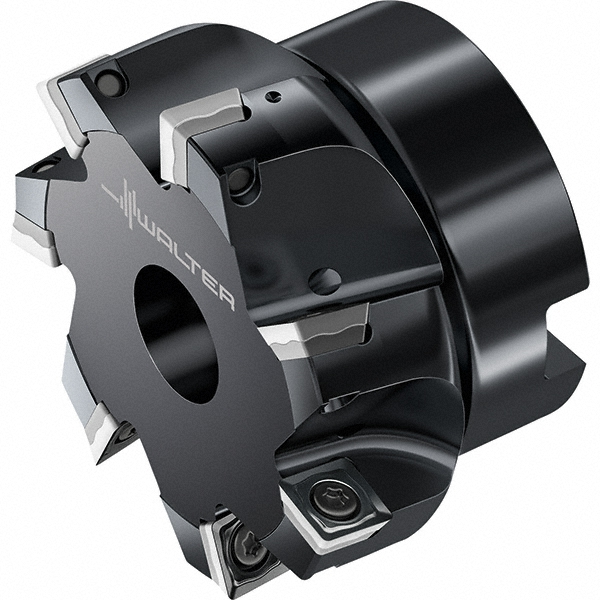

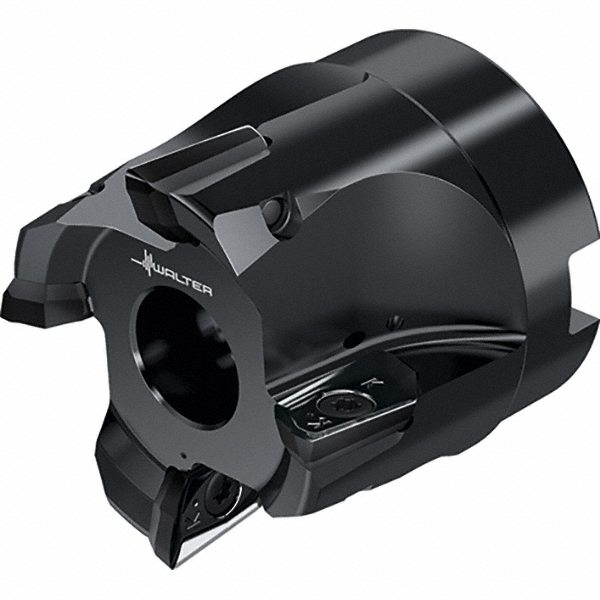

Takes 5 Inserts, 90° Lead Angle, 40.01mm High, SD.W09T3.. Insert Style, Through Coolant, Series M4132

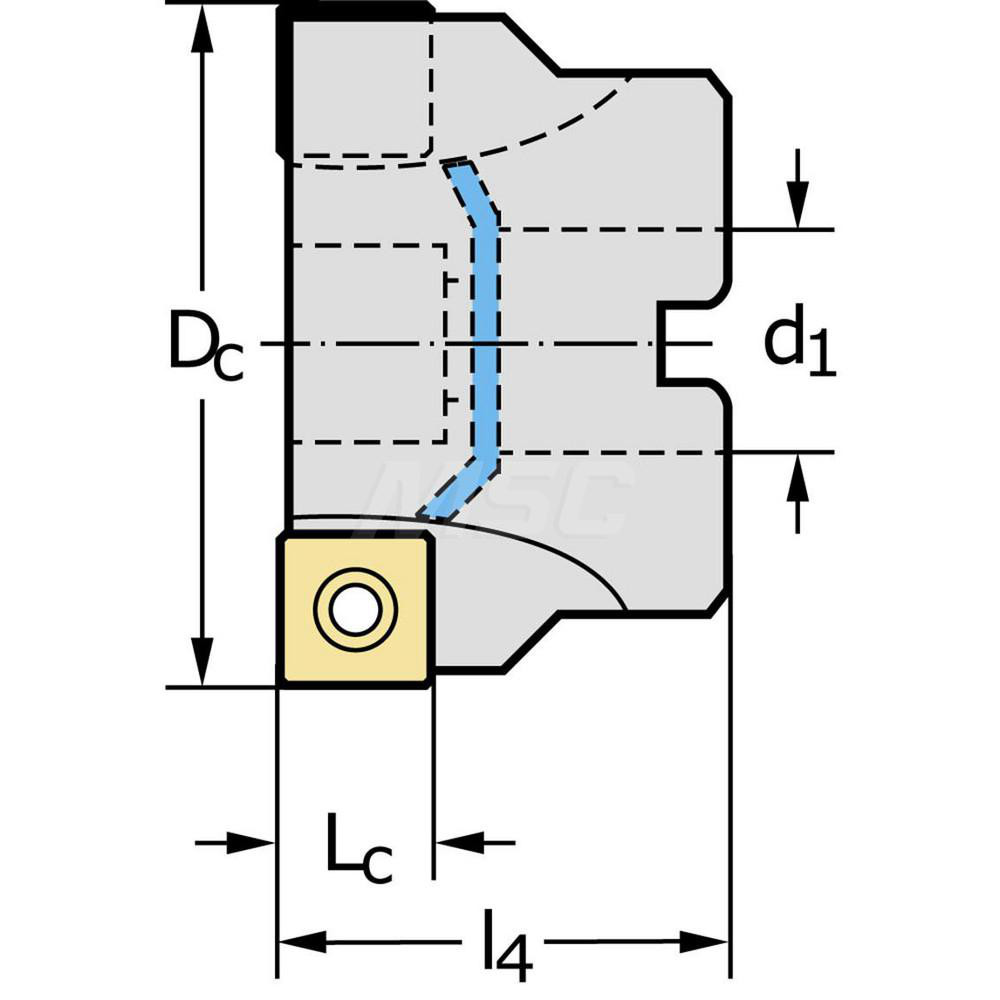

| Maximum Cutting Diameter (Decimal Inch) | 2.4800 |
|---|---|
| Maximum Cutting Diameter (mm) | 62.99 |
| Maximum Depth of Cut (mm) | 8.41 |
| Maximum Depth of Cut (Decimal Inch) | 0.3310 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8660 |

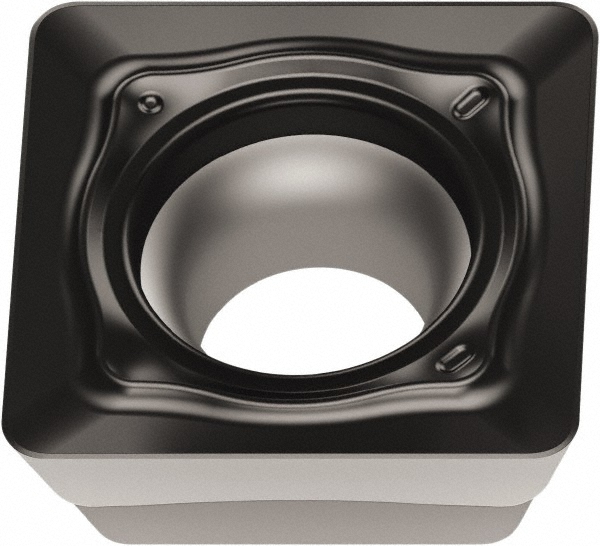

| Compatible Insert Size Code | SD W09T3 |
| Cutter Style | M4132 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | M4132 |
| Overall Height (Decimal Inch) | 1.5750 |
| Tool Application | Facing; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H; O |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Turkey |
| undefined | undefined |
| MSC Number | MSC# 47090303 |
