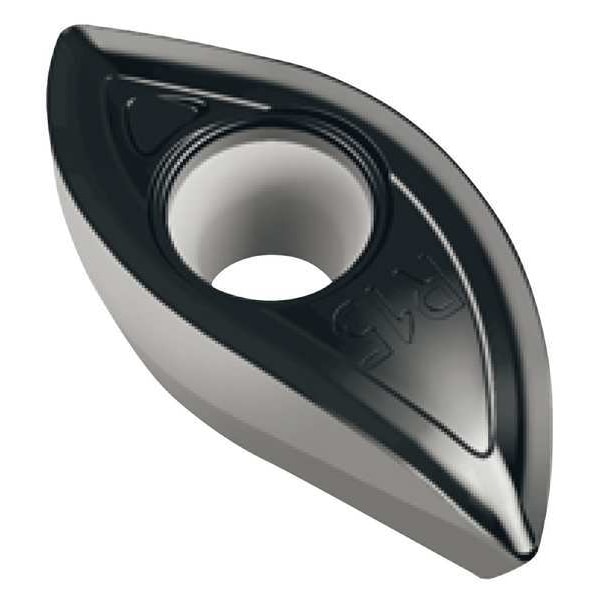

Ballnose XDMT Carbide
| Item | Ball Nose Milling Insert |
|---|---|
| Insert Style | XDMT |
| Insert Shape | Ballnose |
| Insert Size | 16T3095 |
| Insert Material | Carbide |
| Corner Radius | 0.47 mm |
| Hardened (H) Compatibility | No |
| Insert Thickness | 0.147 in |
| ANSI Number | XDMT16T3095R-F55 WKP35S |
| No. of Edges | 2 |
| Chip-Breaker | Yes |
| For Use With | Copy Milling Cutter |
| Steel (P) Compatibility | Yes |
| Mounting Style | Screw Held |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Right Hand |
| Coating | CVD |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Insert Application | Medium |
| Stainless (M) Compatibility | No |
| Grade | WKP35S |
| Nose Radius | 3/8 in |
| Inscribed Circle | 0.63 in |
| Rake | Positive |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Shape | Ball Nose |
| Cutting Edge Length | 15.93 mm |
| Clearance Angle | 15 deg |
| Chip-Breaker Code | F55 |
| ISO Number | XDMT16T3095R-F55 |
| Number of Cutting Edges | 2 |
| Cutting Application | Medium |
| Chip-Breaker Style | 16 deg (Chipbreaker Groove) |
| Hole Type | Countersink Hole |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Primary Material Application | Cast Iron, Steel |
| Thickness | 0.147 in |
| Measurement System | Metric |
| Width | 9 mm |
| Manufacturer Grade | WKP35S |
| Coating Process | CVD |
| Material - Machining | Carbide |
| ANSI Code | XDMT16T3095R-F55 |
| Primary Material Application ISO Code | P, K |
| Package Quantity | 1 |
