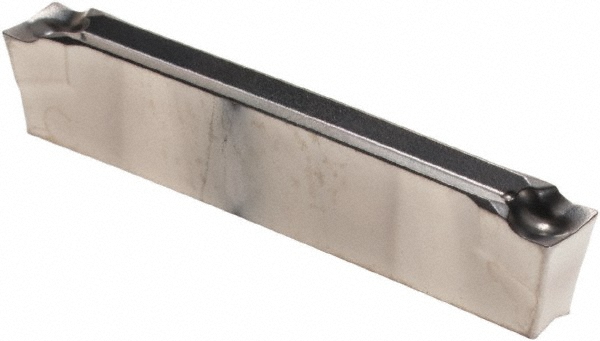

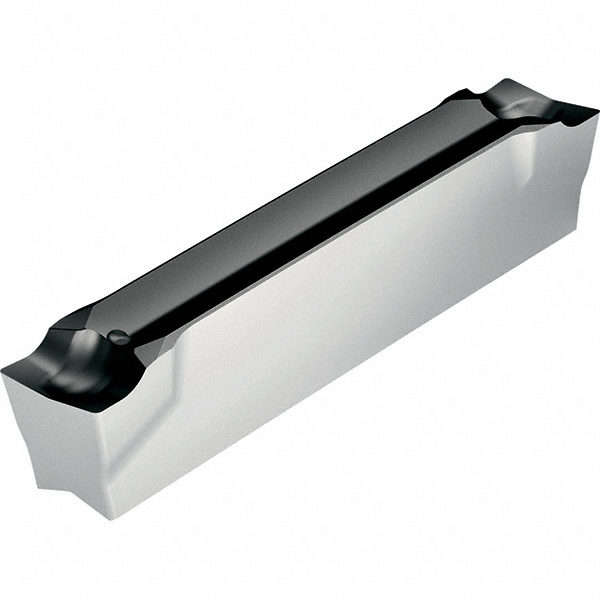

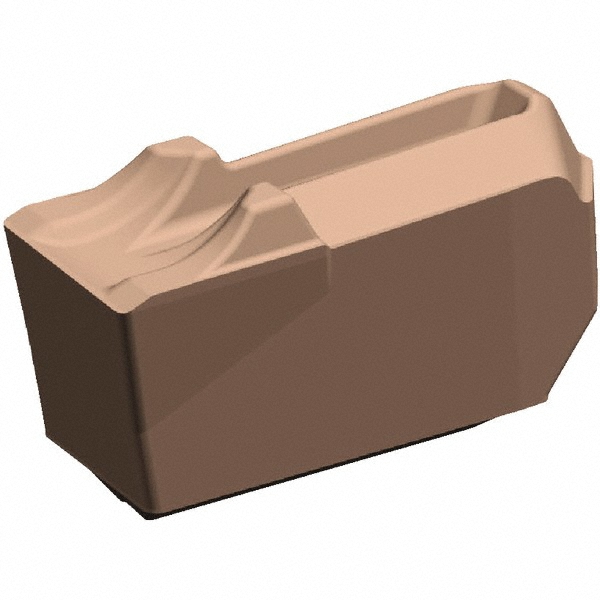

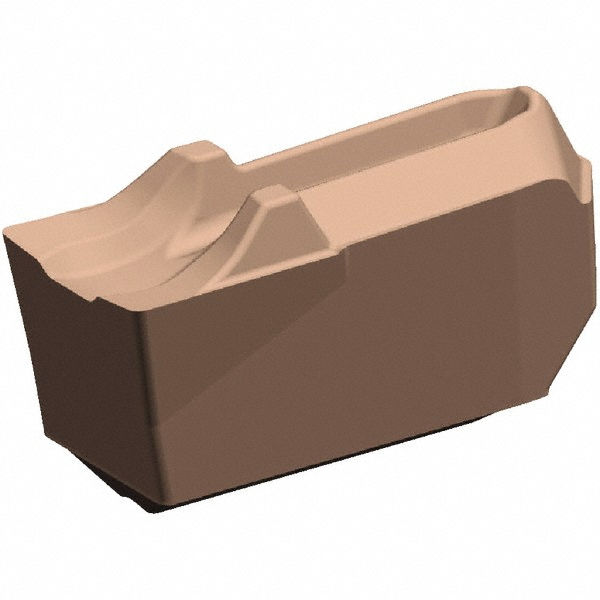

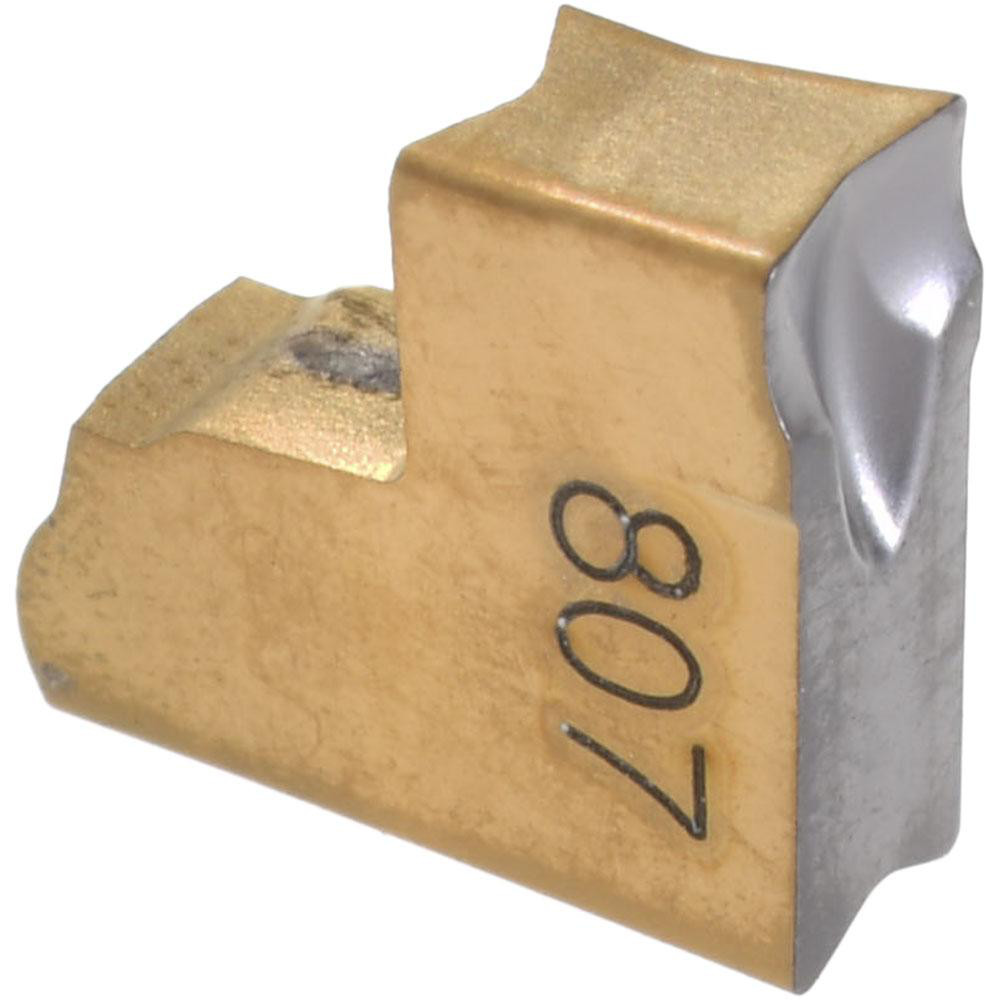

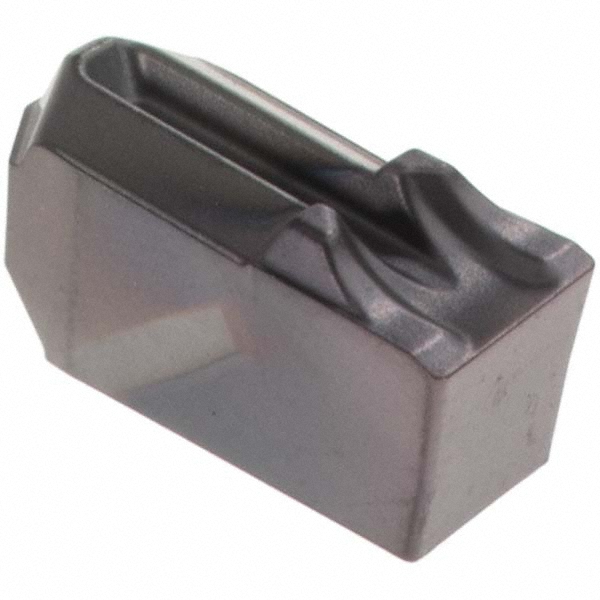

Neutral Lead Angle, Series GX-E-CF5
| Insert Style | GX |
|---|---|
| Insert Size Code | 3E400N02 |
| Insert Material | Carbide |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.1570 |
| Cutting Width (mm) | 4.00 |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 10.00 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | CF5 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | GX-E-CF5 |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Overall Length (Decimal Inch) | 0.9450 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | GX243E400N02CF5 WSM23S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | GX24-3E400N02-CF5 WSM23S |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1570 |
| Overall Width (mm) | 4.00 |
| Coating/Finish | TiAlN/Al2O3/Al |
| UNSPSC Code | 23242105 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 37368156 |
