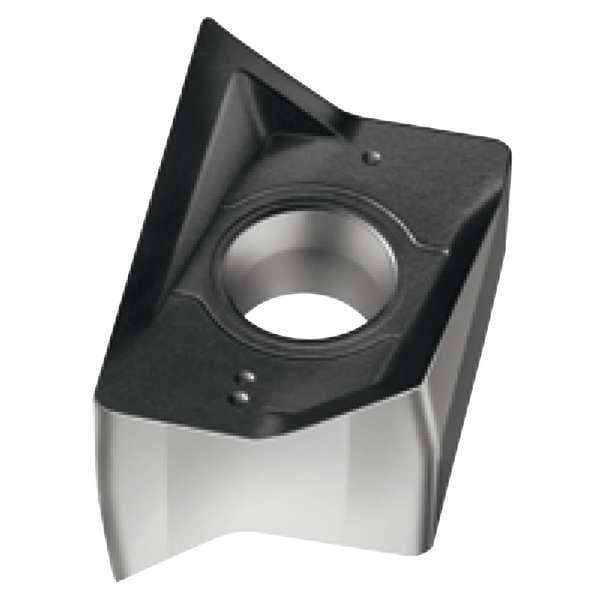

Diamond LNGX Carbide
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | LNGX |
| Insert Shape | Diamond |
| Insert Size | 130,708 |
| Insert Material | Carbide |
| Corner Radius | 1/32 in |
| Workpiece Compatibility | Nonferrous (N) |
| Nose Radius | 0.031 in |
| Grade | WK10 |
| Rake | Negative |
| Insert Application | Roughing |
| ANSI Number | LNGX130708R-L88 WK10 |
| Cast Iron (K) Compatibility | No |
| Cutting Direction | Right Hand |
| Insert Thickness | 0.312 in |
| Mounting Style | Screw Held |
| Super Alloy (S) Compatibility | No |
| Inscribed Circle | 0.433 in |
| Chip-Breaker | Yes |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | No |
| Coating | Uncoated |
| Non Ferrous (N) Compatibility | Yes |
| No. of Edges | 4 |
| For Use With | Xtra·Tec Milling Cutter |
| Steel (P) Compatibility | No |
| Chip-Breaker Style | 28 deg (Chipbreaker Groove) |
| Chip-Breaker Code | L88 |
| Insert Holding Type | Screw Held |
| Cutting Edge Length | 13.7 mm |
| ISO Number | LNGX130708R-L88 WK10 |
| Manufacturer Grade | WK10 |
| Finish - Machining | Bright |
| Wiper Insert | Yes |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Thickness | 0.312 in |
| Clearance Angle | 0 deg |
| Width | 11 mm |
| Number of Cutting Edges | 4 |
| Measurement System | Metric |
| ANSI Code | LNGX130708R-L88 WK10 |
| Secondary Material Application | Cast Iron, Steel |
| Secondary Material Application ISO Code | P, K |
| Cutting Application | Roughing |
| Material - Machining | Carbide |
| Shape | Rectangular |
| Primary Material Application ISO Code | N |
| Package Quantity | 1 |
