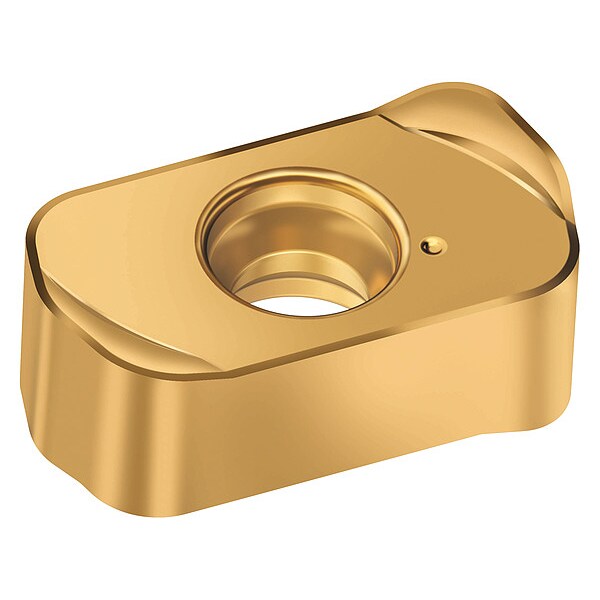

Diamond Milling Insert, 0.2360 in, ENMX, 0.0630 in
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | ENMX |
| Inscribed Circle | 0.236 in |
| Insert Size | 08T316 |
| Chip-Breaker | Yes |
| Corner Radius | 0.063 in |
| Rake | Negative |
| ISO Number | ENMX08T316R-D27 |
| Width | 0.236 in |
| Clearance Angle | 0 deg |
| Hole Type | With Hole |
| Cutting Edge Length | 11 mm |
| Thickness | 0.126 in |
| For Toolholder | Xtra-Tec Milling Cutters |
| Number of Cutting Edges | 2 |
| Chip-Breaker Code | D27 |
| Finish - Machining | TiAlN+TiN |
| Included Angle | 75 Degrees |
| ANSI Code | ENMX08T316R-D27 |
| Manufacturer Grade | WKP35G |
| Shape | Diamond |
| Package Quantity | 1 |
