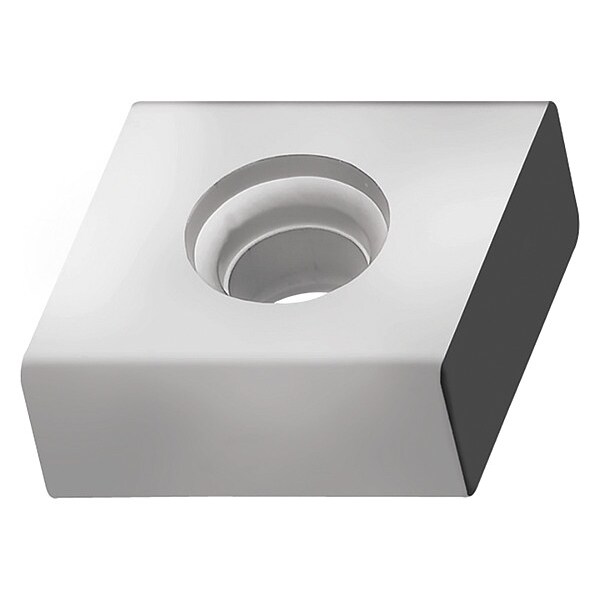

Diamond Milling Insert, 0.3540 in, CNHQ, 1/32 in
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | CNHQ |
| Inscribed Circle | 0.354 in |
| Insert Size | 805 |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Negative |
| ISO Number | CNHQ0805PPN-A57T |
| Width | 0.354 in |
| Thickness | 0.197 in |
| Primary Material Application | Cast Iron, Steel |
| Material - Machining | Carbide |
| Included Angle | 80 Degrees |
| Number of Cutting Edges | 2 |
| Primary Material Application ISO Code | P, K |
| Chip-Breaker Code | A57T |
| Coating Process | CVD |
| ANSI Code | CNHQ0805PPN-A57T |
| Manufacturer Grade | WKP35S |
| Clearance Angle | 0 deg |
| Hole Type | With Hole |
| Cutting Edge Length | 8 mm |
| Shape | Rhombic |
| Finish - Machining | TiCN+Al2O3+ |
| Package Quantity | 1 |
