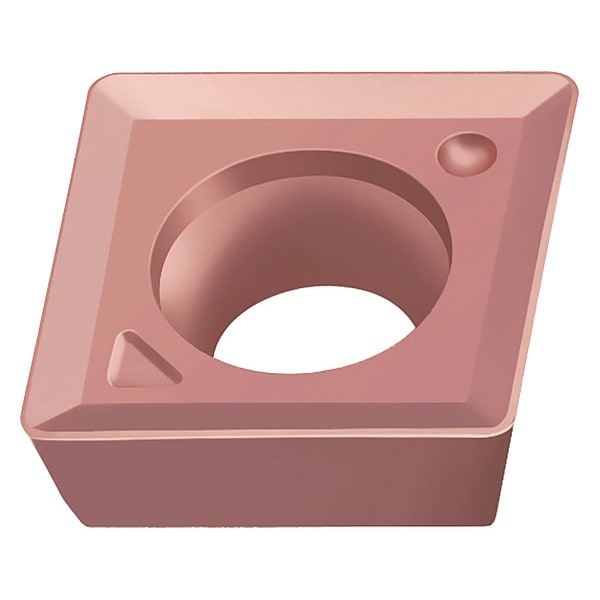

Diamond Milling Insert, 0.4720 in, MPHT, 1/32 in
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | MPHT |
| Inscribed Circle | 0.472 in |
| Insert Size | 120,408 |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Positive |
| ISO Number | MPHT120408-G88 |
| Width | 1/2 in |
| Chip-Breaker Code | G88 |
| Manufacturer Grade | WXN15 |
| Shape | Diamond |
| ANSI Code | MPHT120408-G88 |
| Cutting Edge Length | 12.7 mm |
| Hole Type | With Hole |
| Finish - Machining | TiCN+ |
| Primary Material Application | Non-Ferrous |
| Clearance Angle | 11 deg |
| Primary Material Application ISO Code | N |
| Material - Machining | Carbide |
| Thickness | 3/16 in |
| Included Angle | 86 Degrees |
| Number of Cutting Edges | 2 |
| Coating Process | PVD |
| Package Quantity | 1 |
