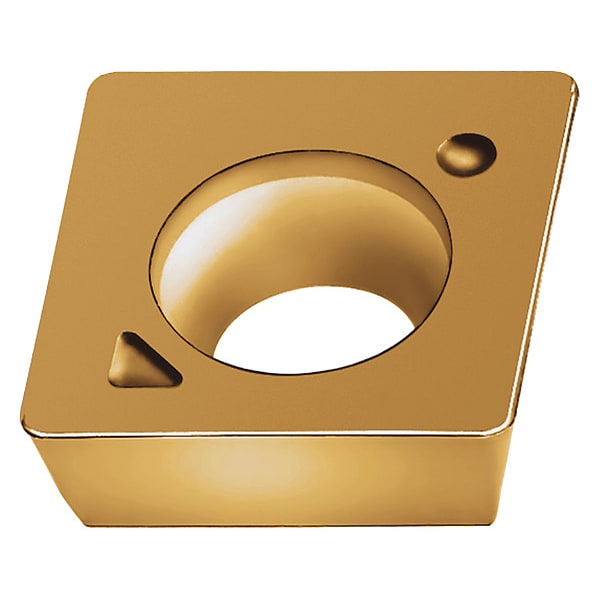

Diamond Milling Insert, 1/4 in, MPHX, 1/64 in
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | MPHX |
| Inscribed Circle | 1/4 in |
| Insert Size | 60,304 |
| Chip-Breaker | Yes |
| Corner Radius | 1/64 in |
| Rake | Positive |
| ISO Number | MPHX060304-A57 |
| Width | 1/4 in |
| Shape | Diamond |
| Included Angle | 86 Degrees |
| Thickness | 1/8 in |
| Hole Type | With Hole |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | P, K |
| Cutting Edge Length | 6.35 mm |
| Manufacturer Grade | WKP35S |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | A57 |
| Number of Cutting Edges | 2 |
| ANSI Code | MPHX060304-A57 |
| Clearance Angle | 11 deg |
| Coating Process | CVD |
| Finish - Machining | TiCN+Al2O3+ |
| Primary Material Application | Cast Iron, Steel |
| Package Quantity | 1 |
