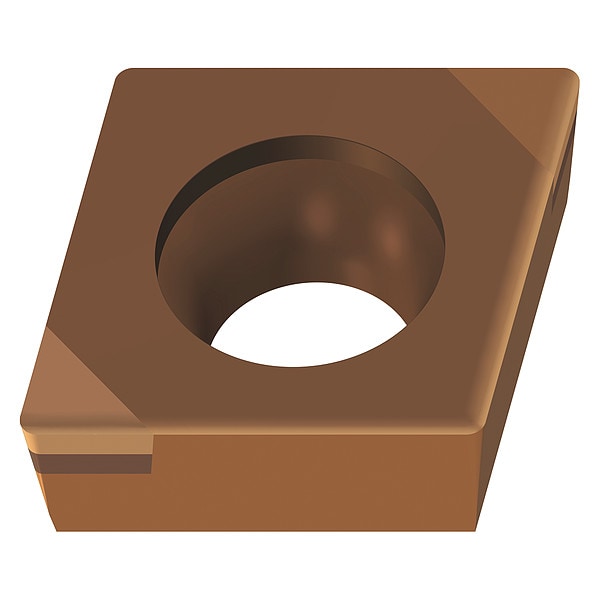

Diamond Turning Insert, 2, CCGW, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | CCGW |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Positive |
| ISO Number | CCGW060202TS-2 |
| Cutting Direction | Neutral |
| Through Hole Inside Dia. | 0.11 in |
| Shape | Diamond |
| Thickness | 1.5 |
| Clearance Angle | 7 deg |
| Manufacturer Grade | WBH10C |
| Included Angle | 80 Degrees |
| ANSI Code | CCGW2(1.5)0.5TS-2 |
| Chip-Breaker Code | TS-2 |
| Cutting Edge Length | 6.45 mm |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
