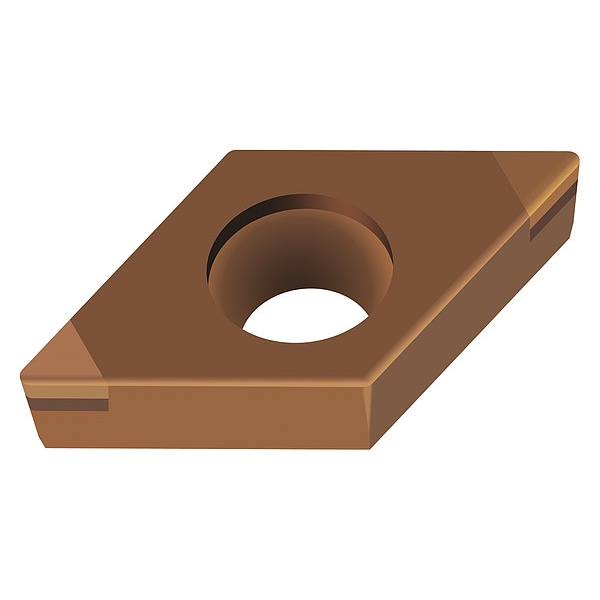

Diamond Turning Insert, 2, DCGW, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | DCGW |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Positive |
| ISO Number | DCGW070202TM-2 |
| Cutting Direction | Neutral |
| Material - Machining | CBN |
| Chip-Breaker Code | TM-2 |
| Clearance Angle | 7 deg |
| Through Hole Inside Dia. | 0.11 in |
| Manufacturer Grade | WBH20 |
| ANSI Code | DCGW2(1.5)0.5TM-2 |
| Measurement System | Fractional Inch |
| Cutting Edge Length | 7.75 mm |
| Shape | Diamond |
| Included Angle | 55 Degrees |
| Thickness | 1.5 |
| Package Quantity | 1 |
