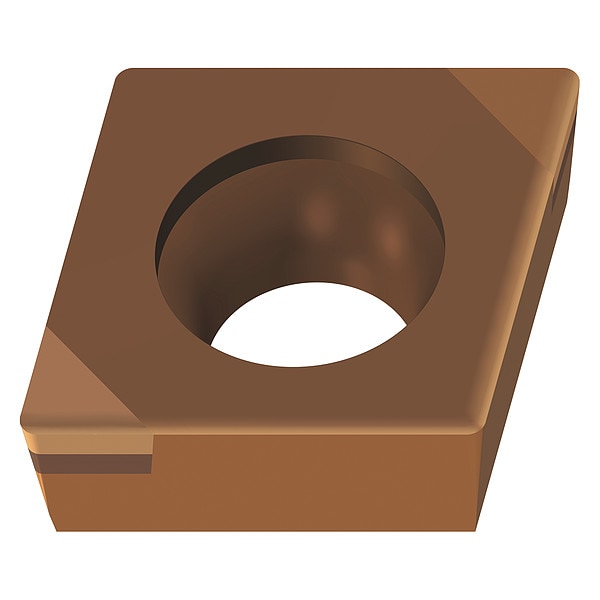

Diamond Turning Insert, 3, CCGW, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | CCGW |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | CCGW09T304TM-2 |
| Cutting Direction | Neutral |
| Material - Machining | CBN |
| Manufacturer Grade | WBH10C |
| Cutting Edge Length | 9.67 mm |
| Thickness | 2.5 |
| Measurement System | Fractional Inch |
| Through Hole Inside Dia. | 0.173 in |
| Included Angle | 80 Degrees |
| Clearance Angle | 7 deg |
| Chip-Breaker Code | TM-2 |
| Shape | Diamond |
| ANSI Code | CCGW3(2.5)1TM-2 |
| Package Quantity | 1 |
