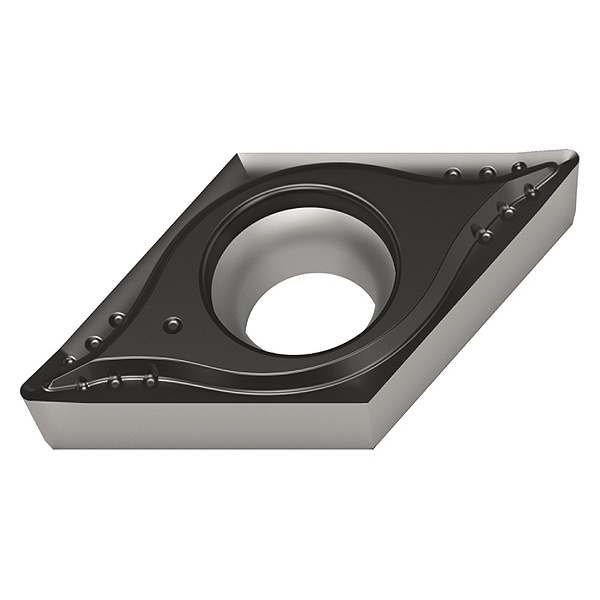

Diamond Turning Insert, 3, DCGT, 2
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | DCGT |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | 2 |
| Rake | Positive |
| ISO Number | DCGT11T308-MM4 |
| Cutting Direction | Neutral |
| ANSI Code | DCGT3(2.5)2-MM4 |
| Finish - Machining | TiAlN+Al2O3+ |
| Clearance Angle | 7 deg |
| Cutting Edge Length | 11.63 mm |
| Thickness | 2.5 |
| Measurement System | Fractional Inch |
| Material - Machining | Carbide |
| Manufacturer Grade | WSM10S |
| Coating Process | PVD |
| Chip-Breaker Code | MM4 |
| Through Hole Inside Dia. | 0.173 in |
| Included Angle | 55 Degrees |
| Shape | Diamond |
| Package Quantity | 1 |
