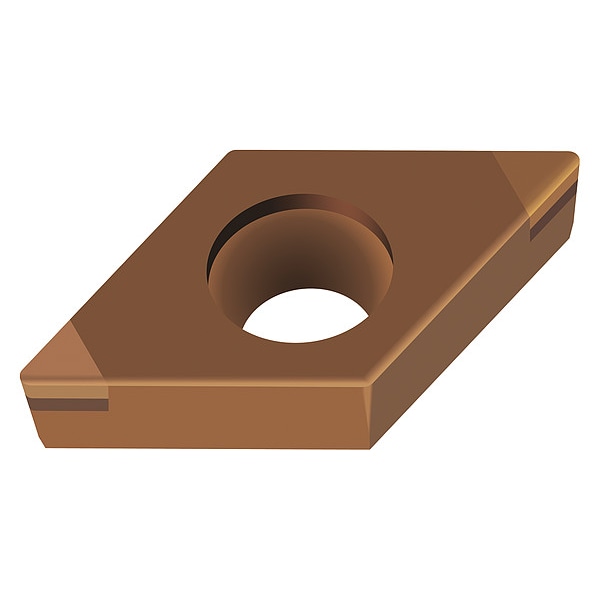

Diamond Turning Insert, 3, DCGW, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | DCGW |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Positive |
| ISO Number | DCGW11T302TS-2 |
| Cutting Direction | Neutral |
| Clearance Angle | 7 deg |
| Through Hole Inside Dia. | 0.173 in |
| Manufacturer Grade | WBH10C |
| Cutting Edge Length | 11.63 mm |
| ANSI Code | DCGW3(2.5)0.5TS-2 |
| Material - Machining | CBN |
| Thickness | 2.5 |
| Shape | Diamond |
| Chip-Breaker Code | TS-2 |
| Measurement System | Fractional Inch |
| Included Angle | 55 Degrees |
| Package Quantity | 1 |
