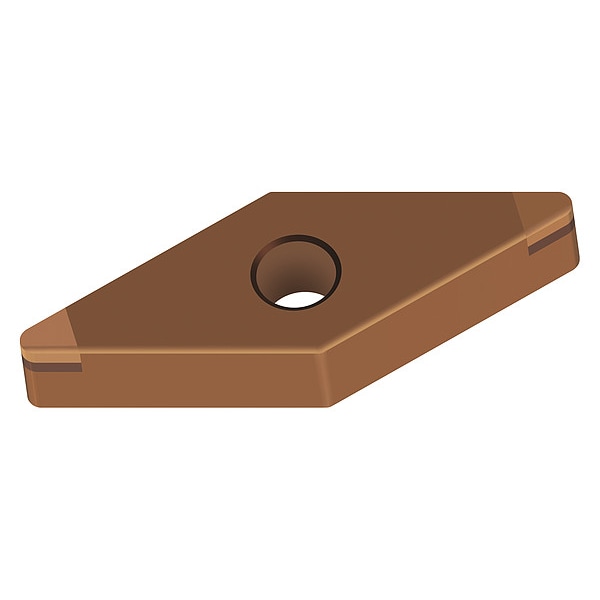

Diamond Turning Insert, 3, VNGA, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | VNGA |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Negative |
| ISO Number | VNGA160404TM-2 |
| Cutting Direction | Neutral |
| Thickness | 3 |
| Material - Machining | CBN |
| Shape | Diamond |
| Clearance Angle | 0 deg |
| Manufacturer Grade | WBH10C |
| Cutting Edge Length | 16.61 mm |
| Chip-Breaker Code | TM-2 |
| Through Hole Inside Dia. | 0.15 in |
| ANSI Code | VNGA331TM-2 |
| Included Angle | 35 Degrees |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
