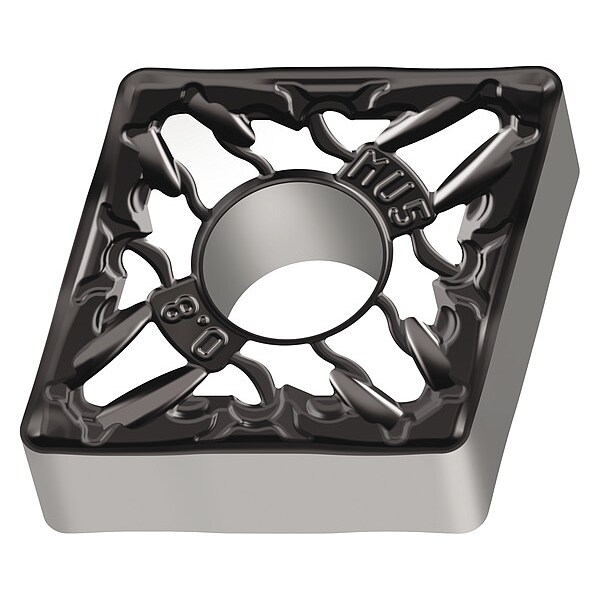

Diamond Turning Insert, 4, CNMG, 2
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 2 |
| Rake | Negative |
| ISO Number | CNMG120408-MU5 |
| Cutting Direction | Neutral |
| Coating Process | PVD |
| Clearance Angle | 0 deg |
| Manufacturer Grade | WSM20S |
| Through Hole Inside Dia. | 13/64 in |
| Cutting Edge Length | 12.9 mm |
| Material - Machining | Carbide |
| Finish - Machining | TiAlN+Al2O3+ |
| Chip-Breaker Code | MU5 |
| Included Angle | 80 Degrees |
| Measurement System | Fractional Inch |
| ANSI Code | CNMG432-MU5 |
| Thickness | 3 |
| Shape | Diamond |
| Package Quantity | 1 |
