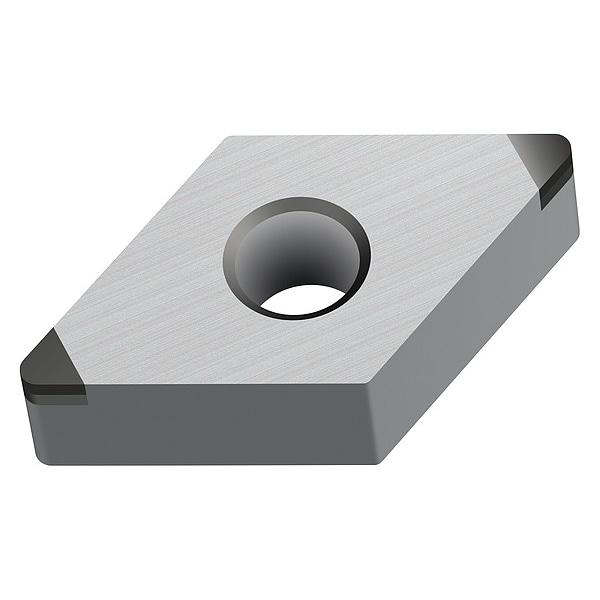

Diamond Turning Insert, 4, DNGA, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | DNGA |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Negative |
| ISO Number | DNGA150404EM-2 |
| Cutting Direction | Neutral |
| ANSI Code | DNGA431EM-2 |
| Cutting Edge Length | 15.5 mm |
| Measurement System | Fractional Inch |
| Material - Machining | CBN |
| Clearance Angle | 0 deg |
| Shape | Diamond |
| Thickness | 3 |
| Included Angle | 55 Degrees |
| Manufacturer Grade | WBS10 |
| Through Hole Inside Dia. | 13/64 in |
| Chip-Breaker Code | EM-2 |
| Package Quantity | 1 |
