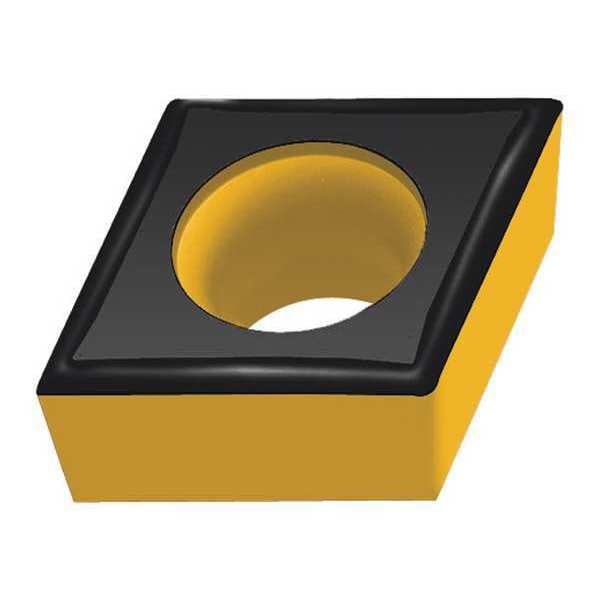

Diamond Turning Insert, Diamond, 1.8, CPGT, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CPGT |
| Inscribed Circle | 1.8 |
| Insert Size | 1.81.50.5 |
| Chip-Breaker | Yes |
| Grade | WAK10 |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | CPGT050202-PF5 WAK10 |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | No |
| Coating | CVD |
| For Use With | Toolholders, Boring Bars |
| Mounting Hole Dia. | 0.098 in |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| Relief Angle | 11 Degrees |
| Cutting Direction | Neutral |
| No. of Edges | 2 |
| Insert Thickness | 0.094 in |
| Mounting Style | Screw |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.008 in |
| ANSI Number | CPGW432 |
| Cast Iron (K) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | Yes |
| Included Angle | 80 Degrees |
| Thickness | 1.5 |
| Chip-Breaker Code | PF5 |
| Manufacturer Grade | WAK10 |
| Number of Cutting Edges | 2 |
| Cutting Edge Length | 5.64 mm |
| Primary Material Application ISO Code | K |
| Cutting Application | Turning |
| Primary Material Application | Cast Iron |
| Material - Machining | Carbide |
| Shape | Rhombic |
| ANSI Code | CPGT1.8(1.5)0.5-PF5 WAK10 |
| Measurement System | Fractional Inch |
| Clearance Angle | 11 deg |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Material | Carbide |
| Package Quantity | 1 |
