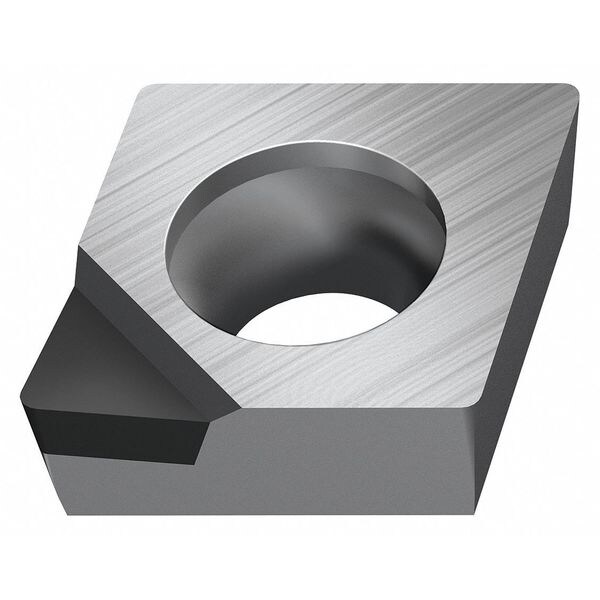

Diamond Turning Insert, Diamond, 2, CCGT, .5, PCD
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 2 |
| Insert Size | 21.50.5 |
| Chip-Breaker | Yes |
| Grade | WDN10 |
| Corner Radius | .5 |
| Insert Material | PCD |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | CCGT060202FS-1 |
| ANSI Number | CCGT2(1.5)0.5FS-1 WDN10 |
| Hardened (H) Compatibility | No |
| Mounting Hole Dia. | 0.11 in |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | No |
| Relief Angle | 7 Degrees |
| Non Ferrous (N) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Insert Thickness | 0.094 in |
| Nose Radius | 0.008 in |
| For Use With | Toolholders, Boring Bars |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Nonferrous (N) |
| Steel (P) Compatibility | No |
| No. of Edges | 1 |
| Coating | Uncoated |
| Mounting Style | Screw |
| Chip-Breaker Code | FS-1 |
| Number of Cutting Edges | 1 |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Included Angle | 80 Degrees |
| Depth of Cut | 0.1 to 3 mm |
| Cutting Application | Turning |
| Measurement System | Fractional Inch |
| Shape | Rhombic |
| Primary Material Application ISO Code | N |
| ANSI Code | CCGT2(1.5)0.5FS-1 |
| Thickness | 1.5 |
| Material - Machining | Polycrystalline Diamond |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Manufacturer Grade | WDN10 |
| Cutting Edge Length | 6.45 mm |
| Clearance Angle | 7 deg |
| Material | PCD |
| Package Quantity | 1 |
