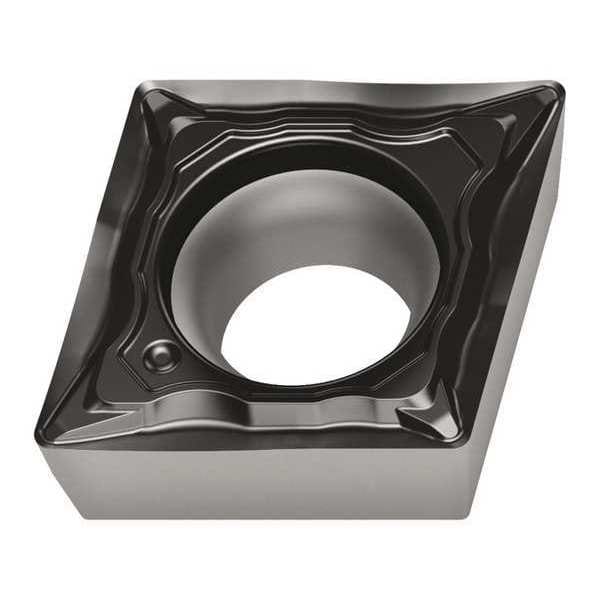

Diamond Turning Insert, Diamond, 2, CPMT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CPMT |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | WMP20S |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | CPMT060204-FM4 WMP20S |
| No. of Edges | 2 |
| ANSI Number | CPMT3(2.5)1 |
| Mounting Style | Screw |
| Non Ferrous (N) Compatibility | No |
| Insert Thickness | 0.094 in |
| Nose Radius | 0.016 in |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| Cutting Direction | Neutral |
| Cast Iron (K) Compatibility | No |
| Mounting Hole Dia. | 0.11 in |
| For Use With | Toolholders, Boring Bars |
| Steel (P) Compatibility | Yes |
| Relief Angle | 11 Degrees |
| Coating | PVD |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Measurement System | Fractional Inch |
| Clearance Angle | 11 deg |
| Primary Material Application ISO Code | P, M |
| ANSI Code | CPMT2(1.5)1-FM4 WMP20S |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Cutting Application | Turning |
| Included Angle | 80 Degrees |
| Primary Material Application | Stainless Steel, Steel |
| Manufacturer Grade | WMP20S |
| Number of Cutting Edges | 2 |
| Material - Machining | Carbide |
| Thickness | 1.5 |
| Depth of Cut | 0.1 to 1.5 mm |
| Chip-Breaker Code | FM4 |
| Cutting Edge Length | 6.45 mm |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Shape | Rhombic |
| Material | Carbide |
| Package Quantity | 1 |
