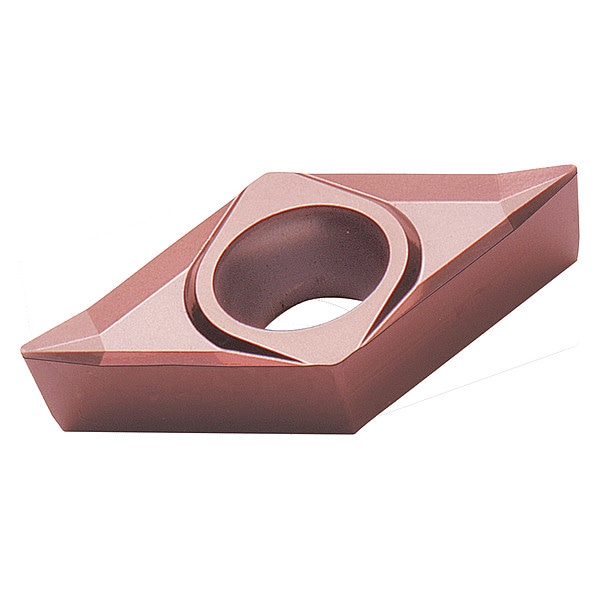

Diamond Turning Insert, Diamond, 2, DCGT, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCGT |
| Inscribed Circle | 2 |
| Insert Size | 21.50.5 |
| Chip-Breaker | Yes |
| Grade | WXN10 |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | DCGT070202-PM2 |
| Relief Angle | 7 Degrees |
| For Use With | Series SDJCL 06 2, SDJCL 08 2, SDJCL 10 2, SDJCL 12 2B, SDJCR 06 2, SDJCR 08 2, SDJCR 10 2, SDJCR 12 2B, A16T-SDUCL 2-DX, A16T-SDUCR 2-DX, A06M-SDUCL 2, A06M-SDUCL 2-R, A06M-SDUCR 2, A06M-SDUCR 2-R, A08M-SDUCL 2, A08M-SDUCL 2-R, A08M-SDUCR 2 |
| No. of Edges | 2 |
| Steel (P) Compatibility | No |
| Nose Radius | 0.0078 in |
| Workpiece Compatibility | Nonferrous (N) |
| Stainless (M) Compatibility | No |
| Mounting Style | Screw Clamp |
| Cast Iron (K) Compatibility | No |
| ANSI Number | DCGT2(1.5)0.5-PM2 |
| Insert Thickness | 0.0937 in |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Neutral |
| Coating | PVD |
| Non Ferrous (N) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Included Angle | 55 Degrees |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Shape | Rhombic |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Finish - Machining | TiCN+ |
| ANSI Code | DCGT2(1.5)0.5-PM2 |
| Clearance Angle | 7 deg |
| Cutting Edge Length | 7.75 mm |
| Thickness | 1.5 |
| Manufacturer Grade | WXN10 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | PM2 |
| Cutting Application | Turning |
| Number of Cutting Edges | 2 |
| Primary Material Application ISO Code | N |
| Material | Carbide |
| Style | DCGT |
| Application | Medium |
| Package Quantity | 1 |
