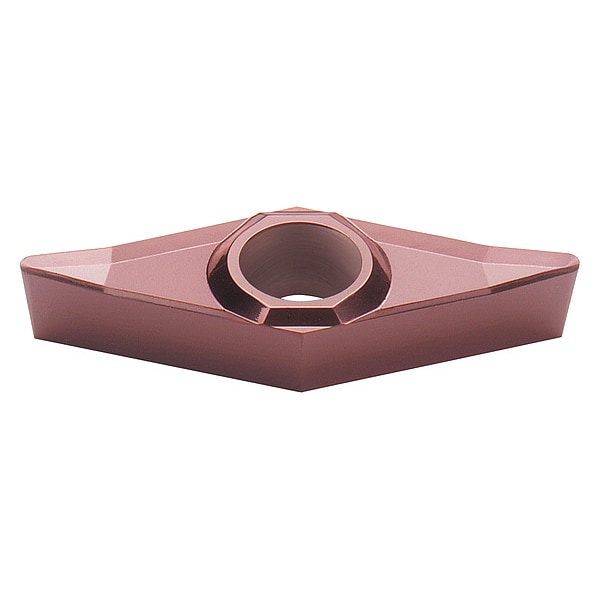

Diamond Turning Insert, Diamond, 2, VCGT, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VCGT |
| Inscribed Circle | 2 |
| Insert Size | 220.5 |
| Chip-Breaker | Yes |
| Grade | WXN10 |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | VCGT110302-PM2 |
| Nose Radius | 0.0078 in |
| Relief Angle | 7 Degrees |
| Workpiece Compatibility | Nonferrous (N) |
| Super Alloy (S) Compatibility | No |
| Mounting Style | Screw Clamp |
| ANSI Number | VCGT2(2)0.5-PM2 |
| Cutting Direction | Neutral |
| For Use With | Series A10R-SVUBL 2-EB1, A10R-SVUBL 2-ERB1, A10R-SVUBR 2-EB1, A10R-SVUBR 2-ERB1, A12S-SVUBL 2-ERB1, A12S-SVUBR 2-EB1, A12S-SVUBR 2-ERB1, A16T-SVUBL 2-DB1, A16T-SVUBR 2-DB1, SVJBL 082-B1, SVJBL 102-B1, SVJBL 122B-B1, SVJBL 162D-B1, SVJBR 082-B1, SVJBR 102-B1, SVJBR 122B-B1, SVJB |
| Coating | PVD |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | No |
| Non Ferrous (N) Compatibility | Yes |
| No. of Edges | 2 |
| Hardened (H) Compatibility | No |
| Insert Thickness | 1/8 in |
| Cast Iron (K) Compatibility | No |
| Material - Machining | Carbide |
| Thickness | 2 |
| ANSI Code | VCGT2(2)0.5-PM2 |
| Manufacturer Grade | WXN10 |
| Cutting Edge Length | 11.07 mm |
| Chip-Breaker Code | PM2 |
| Finish - Machining | TiCN+ |
| Shape | Rhombic |
| Included Angle | 35 Degrees |
| Primary Material Application ISO Code | N |
| Number of Cutting Edges | 2 |
| Measurement System | Fractional Inch |
| Cutting Application | Turning |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Clearance Angle | 7 deg |
| Material | Carbide |
| Application | Medium |
| Style | VCGT |
| Package Quantity | 1 |
