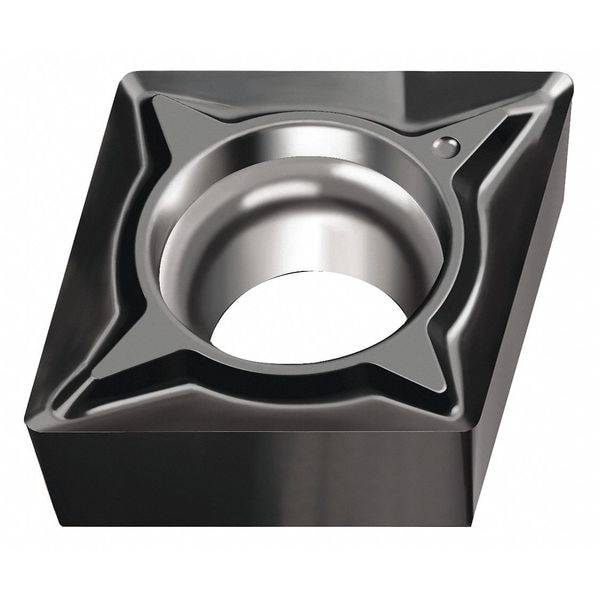

Diamond Turning Insert, Diamond, 3, CCGT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 3 |
| Insert Size | 32.51 |
| Chip-Breaker | Yes |
| Grade | WNN10 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | CCGT09T304-FN2 WNN10 |
| Hardened (H) Compatibility | No |
| Mounting Style | Screw |
| Relief Angle | 7 Degrees |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Cutting Direction | Neutral |
| For Use With | Toolholders, Boring Bars |
| Mounting Hole Dia. | 0.173 in |
| Nose Radius | 0.016 in |
| No. of Edges | 2 |
| Workpiece Compatibility | Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Super Alloy (S) Compatibility | Yes |
| Insert Thickness | 0.156 in |
| ANSI Number | CCGT3(2.5)1-FN2 WNN10 |
| Coating | Uncoated |
| Stainless (M) Compatibility | Yes |
| Non Ferrous (N) Compatibility | Yes |
| Material - Machining | Carbide |
| Cutting Edge Length | 9.67 mm |
| Depth of Cut | 0.2 to 2.5 mm |
| Cutting Application | Turning |
| Finish - Machining | TiAlN |
| Included Angle | 80 Degrees |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Measurement System | Fractional Inch |
| Shape | Rhombic |
| Thickness | 2.5 |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| ANSI Code | CCGT3(2.5)1-FN2 WNN10 |
| Manufacturer Grade | WNN10 |
| Clearance Angle | 7 deg |
| Number of Cutting Edges | 2 |
| Primary Material Application ISO Code | N |
| Chip-Breaker Code | FN2 |
| Material | Carbide |
| Package Quantity | 1 |
