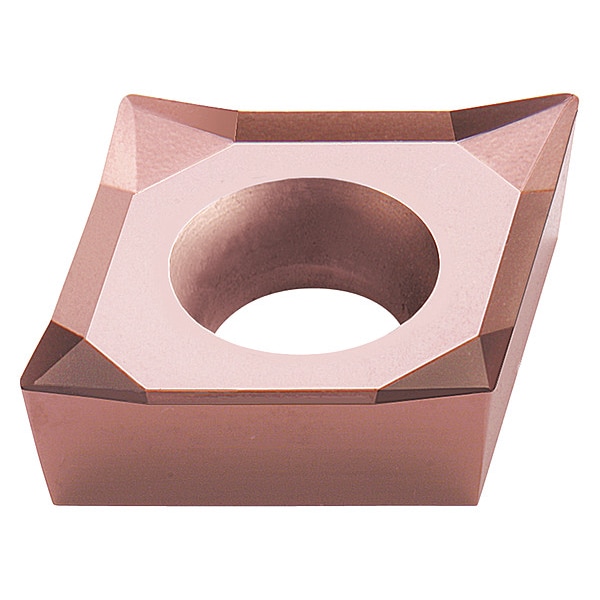

Diamond Turning Insert, Diamond, 3, CCGT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 3 |
| Insert Size | 32.51 |
| Chip-Breaker | Yes |
| Grade | WXN10 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | CCGT09T304-PM2 |
| Cutting Direction | Neutral |
| No. of Edges | 2 |
| Super Alloy (S) Compatibility | No |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | Yes |
| For Use With | Series A10R-SCLCL 3, A10R-SCLCL 3-R, A10R-SCLCR 3, A10R-SCLCR 3-R, A12S-SCLCL 3, A12S-SCLCL 3-R, A12S-SCLCR 3, A12S-SCLCR 3-R, A16T-SCLCL 3, A16T-SCLCR 3, SCLCL 08 3, SCLCL 10 3, SCLCL 12 3B, SCLCL 16 3D, SCLCR 08 3, SCLCR 10 3, SCLCR 12 3B, SCLCR 16 3D, 570-SCLCL-20-09, 570-SCLCL |
| Mounting Style | Screw Clamp |
| Nose Radius | 0.0157 in |
| Workpiece Compatibility | Nonferrous (N) |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| ANSI Number | CCGT3(2.5)1-PM2 |
| Steel (P) Compatibility | No |
| Insert Thickness | 0.1562 in |
| Coating | PVD |
| Relief Angle | 7 Degrees |
| Shape | Rhombic |
| Material - Machining | Carbide |
| Finish - Machining | TiCN+ |
| Clearance Angle | 7 deg |
| Cutting Application | Turning |
| Included Angle | 80 Degrees |
| Measurement System | Fractional Inch |
| Depth of Cut | 0.6 to 4 mm |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Number of Cutting Edges | 2 |
| Chip-Breaker Code | PM2 |
| Cutting Edge Length | 9.67 mm |
| Thickness | 2.5 |
| ANSI Code | CCGT3(2.5)1-PM2 |
| Primary Material Application ISO Code | N |
| Manufacturer Grade | WXN10 |
| Material | Carbide |
| Style | CCGT |
| Application | Medium |
| Package Quantity | 1 |
