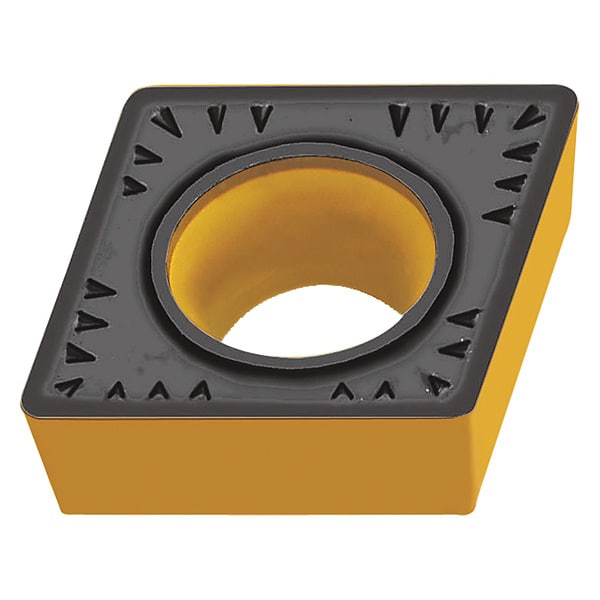

Diamond Turning Insert, Diamond, 3, CCMT, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCMT |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | WPP30 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | CCMT09T308-PM5 WPP30 |
| Mounting Style | Screw Held |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| For Use With | Toolholders and Boring Bars |
| Hardened (H) Compatibility | No |
| ANSI Number | CCMT3(2.5)2-PM |
| Coating | CVD |
| No. of Edges | 2 |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | No |
| Relief Angle | 7 Degrees |
| Workpiece Compatibility | Steel (P) |
| Insert Thickness | 0.156 in |
| Cutting Direction | Neutral |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.031 in |
| Thickness | 2.5 |
| Material - Machining | Carbide |
| Primary Material Application | Steel |
| Cutting Edge Length | 9.67 mm |
| Clearance Angle | 7 deg |
| Measurement System | Fractional Inch |
| Shape | Rhombic |
| Number of Cutting Edges | 2 |
| Finish - Machining | TiCN+Al2O3+TiN |
| Primary Material Application ISO Code | P |
| Included Angle | 80 Degrees |
| Manufacturer Grade | WPP30 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| ANSI Code | CCMT3(2.5)2-PM5 WPP30 |
| Chip-Breaker Code | PM5 |
| Cutting Application | Turning |
| Material | Carbide |
| Style | CCMT |
| Application | Roughing |
| Package Quantity | 1 |
