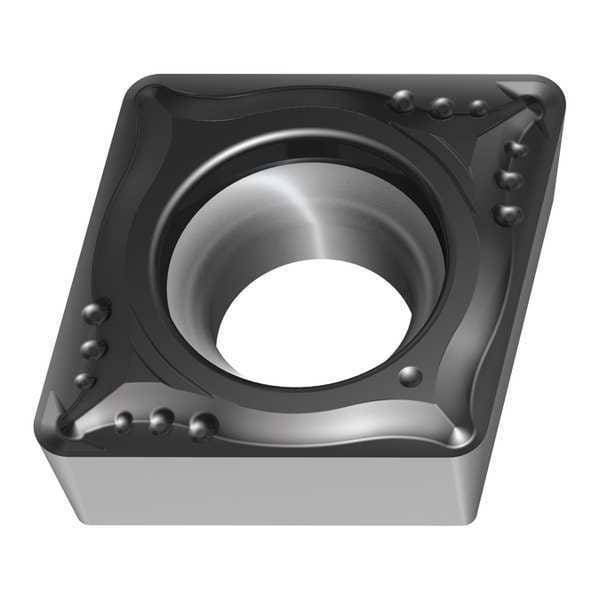

Diamond Turning Insert, Diamond, 3, CPMT, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CPMT |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | WKK20S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | CPMT09T308-MK4 WKK20S |
| For Use With | Toolholders, Boring Bars |
| Coating | PVD |
| ANSI Number | CPMT3(2.5)2 |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Neutral |
| Mounting Style | Screw |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| Mounting Hole Dia. | 0.173 in |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Nose Radius | 0.031 in |
| Insert Thickness | 0.156 in |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 2 |
| Relief Angle | 11 Degrees |
| Steel (P) Compatibility | Yes |
| Included Angle | 80 Degrees |
| Thickness | 2.5 |
| Primary Material Application | Cast Iron |
| Cutting Application | Turning |
| Shape | Rhombic |
| Cutting Edge Length | 9.67 mm |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| ANSI Code | CPMT3(2.5)2-MK4 WKK20S |
| Clearance Angle | 11 deg |
| Measurement System | Fractional Inch |
| Depth of Cut | 0.5 to 3 mm |
| Number of Cutting Edges | 2 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Material - Machining | Carbide |
| Manufacturer Grade | WKK20S |
| Chip-Breaker Code | MK4 |
| Primary Material Application ISO Code | K |
| Material | Carbide |
| Package Quantity | 1 |
