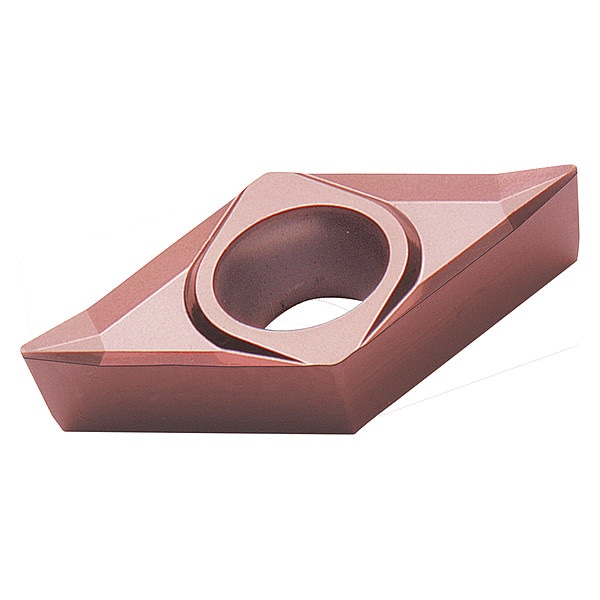

Diamond Turning Insert, Diamond, 3, DCGT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCGT |
| Inscribed Circle | 3 |
| Insert Size | 32.51 |
| Chip-Breaker | Yes |
| Grade | WXN10 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | DCGT11T304-PM2 |
| Super Alloy (S) Compatibility | No |
| Non Ferrous (N) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Cutting Direction | Neutral |
| Relief Angle | 7 Degrees |
| Mounting Style | Screw Clamp |
| ANSI Number | DCGT3(2.5)1-PM2 |
| Workpiece Compatibility | Nonferrous (N) |
| No. of Edges | 2 |
| Stainless (M) Compatibility | No |
| Hardened (H) Compatibility | No |
| Coating | PVD |
| Insert Thickness | 0.1562 in |
| For Use With | Series A12S-SDUCR 3, SDJCL 12 3B, SDJCL 16 3D, SDJCR 12 3B, SDJCR 16 3D, A16T-SDQCL 3, A16T-SDQCR 3, A16T-SDUCL 3, A16T-SDUCR 3, A20T-SDUCL 3-X, A20T-SDUCR 3-X, A12S-SDQCL 3, A12S-SDQCR 3, A12S-SDUCL 3 |
| Steel (P) Compatibility | No |
| Nose Radius | 0.0157 in |
| Material - Machining | Carbide |
| Number of Cutting Edges | 2 |
| ANSI Code | DCGT3(2.5)1-PM2 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Cutting Application | Turning |
| Primary Material Application ISO Code | N |
| Manufacturer Grade | WXN10 |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Thickness | 2.5 |
| Shape | Rhombic |
| Included Angle | 55 Degrees |
| Clearance Angle | 7 deg |
| Cutting Edge Length | 11.63 mm |
| Chip-Breaker Code | PM2 |
| Finish - Machining | TiCN+ |
| Measurement System | Fractional Inch |
| Material | Carbide |
| Application | Medium |
| Style | DCGT |
| Package Quantity | 1 |
