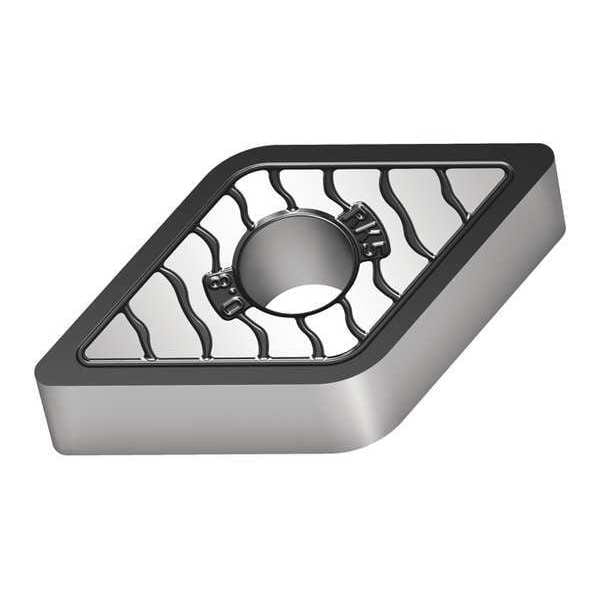

Diamond Turning Insert, Diamond, 3, DNMA, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DNMA |
| Inscribed Circle | 3 |
| Insert Size | 331 |
| Chip-Breaker | Yes |
| Grade | WKK10S |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | DNMA110404-RK5 WKK10S |
| Cutting Direction | Neutral |
| Nose Radius | 0.016 in |
| Relief Angle | 0 Degrees |
| Steel (P) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| No. of Edges | 2 |
| ANSI Number | DNMA332 |
| Hardened (H) Compatibility | Yes |
| Mounting Style | Clamp |
| For Use With | Toolholders, Boring Bars |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| Stainless (M) Compatibility | No |
| Mounting Hole Dia. | 0.15 in |
| Cast Iron (K) Compatibility | Yes |
| Coating | CVD |
| Super Alloy (S) Compatibility | No |
| Insert Thickness | 0.188 in |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Depth of Cut | 0.6 to 4 mm |
| Shape | Rhombic |
| Manufacturer Grade | WKK10S |
| Material - Machining | Carbide |
| Thickness | 3 |
| Number of Cutting Edges | 2 |
| Primary Material Application | Cast Iron |
| Insert Holding Type | Straight Hole |
| ANSI Code | DNMA331-RK5 WKK10S |
| Clearance Angle | 0 deg |
| Cutting Application | Turning |
| Primary Material Application ISO Code | K |
| Chip-Breaker Code | RK5 |
| Measurement System | Fractional Inch |
| Cutting Edge Length | 11.63 mm |
| Included Angle | 55 Degrees |
| Material | Carbide |
| Package Quantity | 1 |
