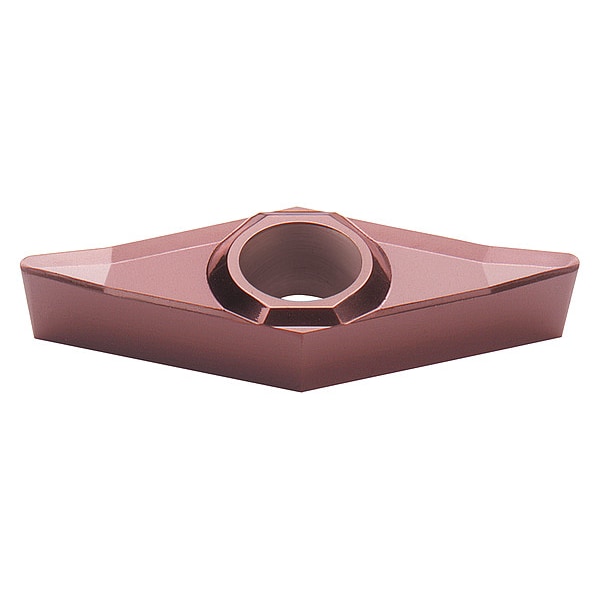

Diamond Turning Insert, Diamond, 3, VCGT, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VCGT |
| Inscribed Circle | 3 |
| Insert Size | 332 |
| Chip-Breaker | Yes |
| Grade | WXN10 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | VCGT160408-PM2 |
| For Use With | Series SVHBL 12 3B, SVHBL 16 3D, SVHBR 12 3B, SVHBR 16 3D, SVJBL 12 3B, SVJBL 16 3D, SVJBL 20 3D, SVJBR 12 3B, SVJBR 16 3D, A16T-SVQBL 3-D, A16T-SVQBR 3-D, A20T-SVUBL 3, A20T-SVUBR 3, A24T-SVPBL 3, A24T-SVPBR 3, A24T-SVQBL 3, A24T-SVQBR 3, A24T-SVUBL 3, A24T-SVUBR 3 |
| Mounting Style | Screw Clamp |
| Stainless (M) Compatibility | No |
| Workpiece Compatibility | Nonferrous (N) |
| Super Alloy (S) Compatibility | No |
| Relief Angle | 7 Degrees |
| Non Ferrous (N) Compatibility | Yes |
| ANSI Number | VCGT332-PM2 |
| No. of Edges | 2 |
| Coating | PVD |
| Nose Radius | 0.031 in |
| Cutting Direction | Neutral |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | No |
| Hardened (H) Compatibility | No |
| Insert Thickness | 3/16 in |
| Cutting Application | Turning |
| Thickness | 3 |
| Shape | Rhombic |
| Primary Material Application ISO Code | N |
| Included Angle | 35 Degrees |
| ANSI Code | VCGT332-PM2 |
| Clearance Angle | 7 deg |
| Number of Cutting Edges | 2 |
| Measurement System | Fractional Inch |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Chip-Breaker Code | PM2 |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Cutting Edge Length | 16 mm |
| Manufacturer Grade | WXN10 |
| Material - Machining | Carbide |
| Finish - Machining | TiCN+ |
| Material | Carbide |
| Application | Medium |
| Style | VCGT |
| Package Quantity | 1 |
