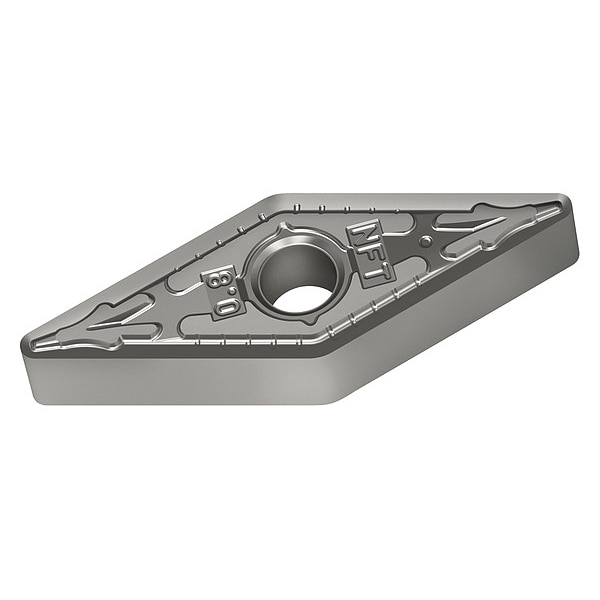

Diamond Turning Insert, Diamond, 3, VNGG, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNGG |
| Inscribed Circle | 3 |
| Insert Size | 331 |
| Chip-Breaker | Yes |
| Grade | WS10 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | VNGG160404-NFT WS10 |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Super Alloy (S) |
| ANSI Number | VNGG331-NFT |
| Relief Angle | 0 Degrees |
| No. of Edges | 4 |
| Mounting Style | Screw Clamp |
| Cast Iron (K) Compatibility | No |
| For Use With | Series DVJNR/L 3 |
| Insert Thickness | 3/16 in |
| Hardened (H) Compatibility | No |
| Coating | Uncoated |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Nose Radius | 0.0157 in |
| ANSI Code | VNGG331-NFT WS10 |
| Manufacturer Grade | WS10 |
| Finish - Machining | Bright |
| Number of Cutting Edges | 4 |
| Cutting Application | Turning |
| Chip-Breaker Code | NFT |
| Included Angle | 35 Degrees |
| Thickness | 3 |
| Material - Machining | Carbide |
| Primary Material Application | Titanium, Nickel |
| Measurement System | Fractional Inch |
| Cutting Edge Length | 16 mm |
| Shape | Rhombic |
| Primary Material Application ISO Code | S |
| Insert Holding Type | Straight Hole |
| Clearance Angle | 0 deg |
| Depth of Cut | 0.1 to 1.5 mm |
| Material | Carbide |
| Style | VNGG |
| Application | Finishing |
| Package Quantity | 1 |
