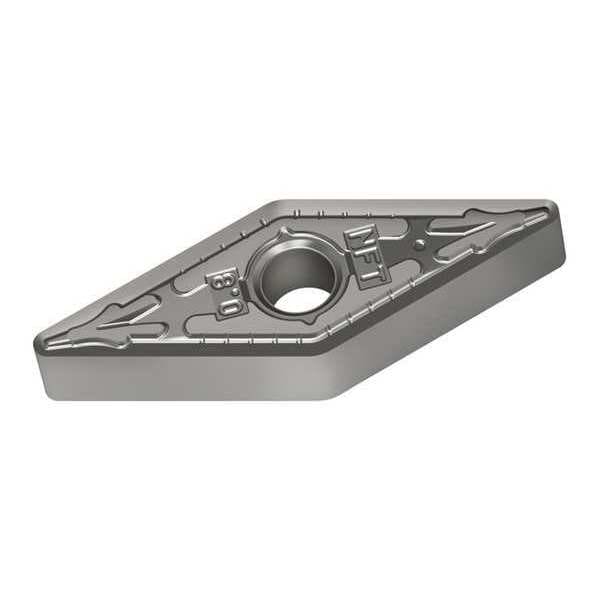

Diamond Turning Insert, Diamond, 3, VNGG, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNGG |
| Inscribed Circle | 3 |
| Insert Size | 333 |
| Chip-Breaker | Yes |
| Grade | WS10 |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | VNGG160412-NFT WS10 |
| Workpiece Compatibility | Super Alloy (S) |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Cutting Direction | Neutral |
| Nose Radius | 0.047 in |
| ANSI Number | VNGG331 |
| Mounting Hole Dia. | 0.15 in |
| For Use With | Toolholders, Boring Bars |
| Mounting Style | Clamp |
| Insert Thickness | 0.188 in |
| Relief Angle | 0 Degrees |
| Cast Iron (K) Compatibility | No |
| Coating | Uncoated |
| Hardened (H) Compatibility | No |
| No. of Edges | 2 |
| Stainless (M) Compatibility | No |
| Primary Material Application ISO Code | S |
| Insert Holding Type | Straight Hole |
| Primary Material Application | Titanium, Nickel |
| Cutting Application | Turning |
| Cutting Edge Length | 16 mm |
| Manufacturer Grade | WS10 |
| Chip-Breaker Code | NFT |
| Measurement System | Fractional Inch |
| Included Angle | 35 Degrees |
| Number of Cutting Edges | 2 |
| ANSI Code | VNGG333-NFT WS10 |
| Depth of Cut | 0.2 to 2 mm |
| Material - Machining | Carbide |
| Thickness | 3 |
| Finish - Machining | Bright |
| Shape | Rhombic |
| Clearance Angle | 0 deg |
| Material | Carbide |
| Package Quantity | 1 |
