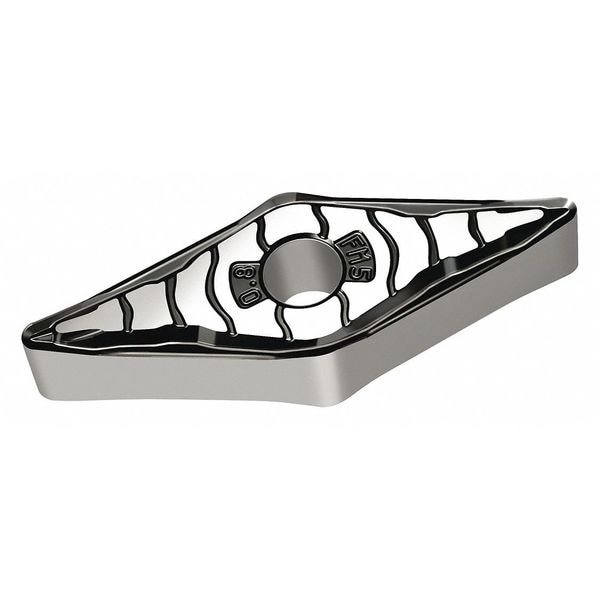

Diamond Turning Insert, Diamond, 3, VNMG, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNMG |
| Inscribed Circle | 3 |
| Insert Size | 330.5 |
| Chip-Breaker | Yes |
| Grade | WSM10S |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | VNMG160402-FM5 WSM10S |
| Cast Iron (K) Compatibility | No |
| No. of Edges | 4 |
| Steel (P) Compatibility | Yes |
| ANSI Number | VNMG3(3)0.5-FM5 WSM10S |
| Mounting Hole Dia. | 0 in |
| Non Ferrous (N) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.008 in |
| Stainless (M) Compatibility | Yes |
| Cutting Direction | Neutral |
| Coating | PVD |
| Mounting Style | Clamp |
| Relief Angle | 0 Degrees |
| Insert Thickness | 0.188 in |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Shape | Rhombic |
| Thickness | 3 |
| Material - Machining | Carbide |
| Depth of Cut | 0.1 to 1 mm |
| Finish - Machining | TiAlN+Al2O3+Al |
| Chip-Breaker Code | FM5 |
| Included Angle | 35 Degrees |
| Cutting Edge Length | 16 mm |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Number of Cutting Edges | 4 |
| Primary Material Application ISO Code | M, S |
| ANSI Code | VNMG3(3)0.5-FM5 WSM10S |
| Manufacturer Grade | WSM10S |
| Measurement System | Fractional Inch |
| Clearance Angle | 0 deg |
| Cutting Application | Turning |
| Insert Holding Type | Straight Hole |
| Material | Carbide |
| Package Quantity | 1 |
