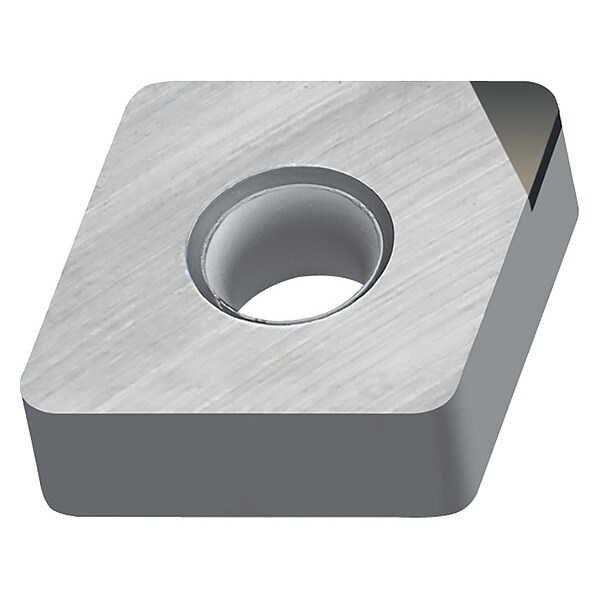

Diamond Turning Insert, Diamond, 4, CNMA, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMA |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Grade | WCB50 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMA120408-2 |
| Relief Angle | 0 Degrees |
| For Use With | Series DCLNR/L4 |
| ANSI Number | CNMA432-2 |
| Nose Radius | 0.031 in |
| Mounting Style | Screw Clamp |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | No |
| Insert Thickness | 3/16 in |
| Coating | Uncoated |
| No. of Edges | 4 |
| Workpiece Compatibility | Hardened (H) |
| Hardened (H) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.9 mm |
| Shape | Rhombic |
| Cutting Application | Turning |
| Manufacturer Grade | WCB50 |
| Primary Material Application ISO Code | H |
| Number of Cutting Edges | 2 |
| ANSI Code | CNMA432-2 |
| Clearance Angle | 0 deg |
| Depth of Cut | 0.1 to 0.5 mm |
| Thickness | 3 |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Included Angle | 80 Degrees |
| Primary Material Application | Hardened Steel |
| Insert Holding Type | Straight Hole |
| Material | Carbide |
| Style | CNMA |
| Application | Roughing |
| Package Quantity | 1 |
