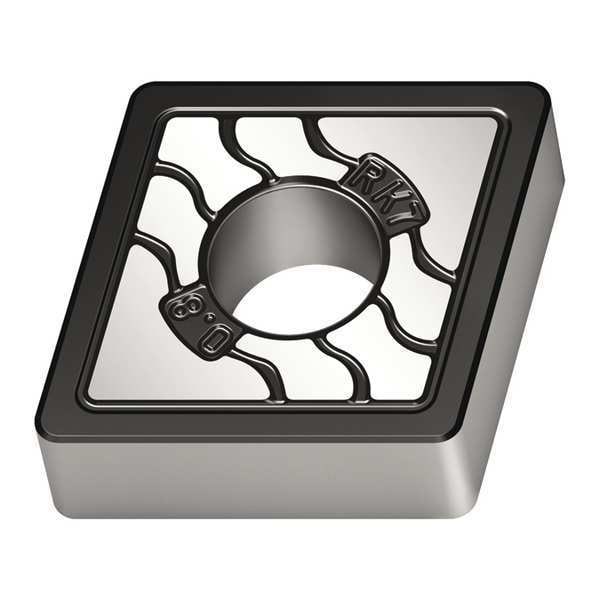

Diamond Turning Insert, Diamond, 4, CNMA, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMA |
| Inscribed Circle | 4 |
| Insert Size | 433 |
| Chip-Breaker | Yes |
| Grade | WKK10S |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMA120412-RK7 WKK10S |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| Mounting Hole Dia. | 0.203 in |
| Relief Angle | 0 Degrees |
| Non Ferrous (N) Compatibility | No |
| Coating | CVD |
| Stainless (M) Compatibility | No |
| Cutting Direction | Neutral |
| Mounting Style | Clamp |
| Steel (P) Compatibility | No |
| No. of Edges | 2 |
| Hardened (H) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.047 in |
| Insert Thickness | 0.188 in |
| Cast Iron (K) Compatibility | Yes |
| ANSI Number | CNMA432 |
| Cutting Edge Length | 12.9 mm |
| Thickness | 3 |
| Manufacturer Grade | WKK10S |
| Chip-Breaker Code | RK7 |
| Cutting Application | Turning |
| ANSI Code | CNMA433-RK7 WKK10S |
| Primary Material Application ISO Code | K |
| Clearance Angle | 0 deg |
| Insert Holding Type | Straight Hole |
| Measurement System | Fractional Inch |
| Included Angle | 80 Degrees |
| Material - Machining | Carbide |
| Depth of Cut | 1.2 to 5 mm |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Shape | Rhombic |
| Number of Cutting Edges | 2 |
| Primary Material Application | Cast Iron |
| Material | Carbide |
| Package Quantity | 1 |
