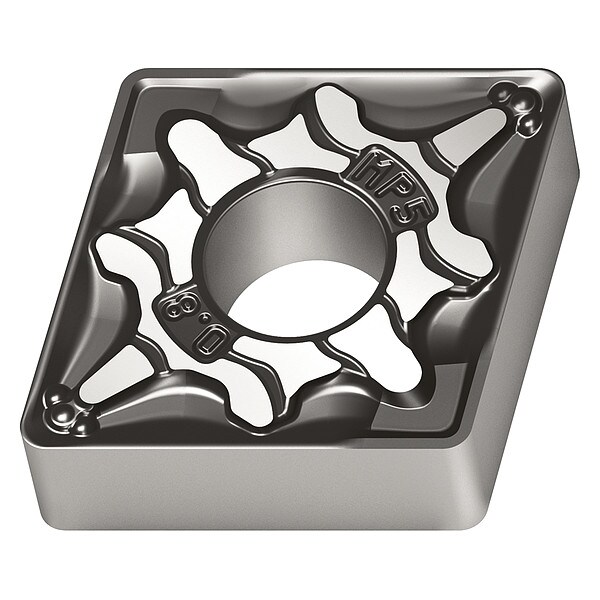

Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | WPP20S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | CNMG120408-MP5 WPP20S |
| Nose Radius | 0.031 in |
| Stainless (M) Compatibility | No |
| Cutting Direction | Neutral |
| Relief Angle | 0 Degrees |
| Insert Thickness | 3/16 in |
| Mounting Style | Screw Held |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| For Use With | Toolholders and Boring Bars |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Steel (P) |
| ANSI Number | CNMG432-MP5 |
| Coating | CVD |
| No. of Edges | 8 |
| Material - Machining | Carbide |
| Primary Material Application | Steel |
| Shape | Rhombic |
| Cutting Application | Turning |
| Insert Holding Type | Straight Hole |
| Primary Material Application ISO Code | P |
| Manufacturer Grade | WPP20S |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Depth of Cut | 0.6 to 5 mm |
| Measurement System | Fractional Inch |
| Cutting Edge Length | 12.9 mm |
| Chip-Breaker Code | MP5 |
| ANSI Code | CNMG432-MP5 WPP20S |
| Included Angle | 80 Degrees |
| Clearance Angle | 0 deg |
| Number of Cutting Edges | 8 |
| Thickness | 3 |
| Material | Carbide |
| Application | Medium |
| Style | CNMG |
| Package Quantity | 1 |
