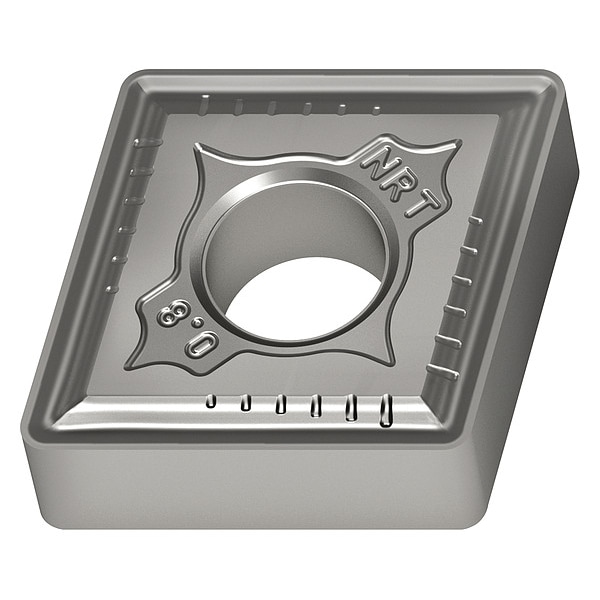

Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | WS10 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMG120408-NRT WS10 |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| No. of Edges | 4 |
| Relief Angle | 0 Degrees |
| Insert Thickness | 3/16 in |
| Workpiece Compatibility | Super Alloy (S) |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Mounting Style | Screw Clamp |
| For Use With | Series DCLNR/L4 |
| ANSI Number | CNMG432-NRT |
| Nose Radius | 0.031 in |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Clearance Angle | 0 deg |
| Cutting Edge Length | 12.9 mm |
| Insert Holding Type | Straight Hole |
| Shape | Rhombic |
| Cutting Application | Turning |
| Chip-Breaker Code | NRT |
| Material - Machining | Carbide |
| Primary Material Application | Titanium, Nickel |
| Number of Cutting Edges | 4 |
| ANSI Code | CNMG432-NRT WS10 |
| Depth of Cut | 1 to 6 mm |
| Measurement System | Fractional Inch |
| Finish - Machining | Bright |
| Included Angle | 80 Degrees |
| Thickness | 3 |
| Primary Material Application ISO Code | S |
| Manufacturer Grade | WS10 |
| Material | Carbide |
| Style | CNMG |
| Application | Roughing |
| Package Quantity | 1 |
