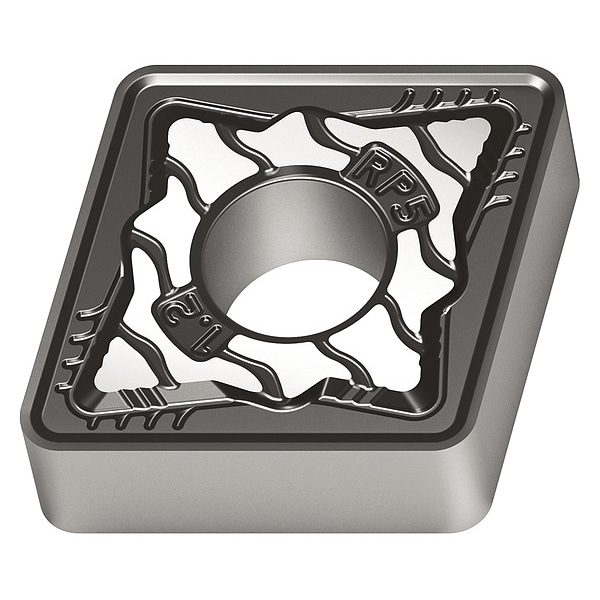

Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | WKK10S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | CNMG120408-RP5 WKK10S |
| Nose Radius | 0.031 |
| ANSI Number | CNMG432-RP5 |
| Non Ferrous (N) Compatibility | No |
| For Use With | ISO Turning Holders |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 4 |
| Relief Angle | 0 Degrees |
| Steel (P) Compatibility | No |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Insert Thickness | 0.187 |
| Stainless (M) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K) |
| Coating | CVD |
| Mounting Style | Screw |
| Cutting Application | Turning |
| Measurement System | Fractional Inch |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Material - Machining | Carbide |
| Depth of Cut | 0.8 to 6 mm |
| Number of Cutting Edges | 4 |
| ANSI Code | CNMG432-RP5 WKK10S |
| Shape | Rhombic |
| Clearance Angle | 0 deg |
| Included Angle | 80 Degrees |
| Chip-Breaker Code | RP5 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Cutting Edge Length | 12.9 mm |
| Insert Holding Type | Straight Hole |
| Manufacturer Grade | WKK10S |
| Thickness | 3 |
| Material | Carbide |
| Style | CNMG |
| Application | Medium |
| Package Quantity | 1 |
