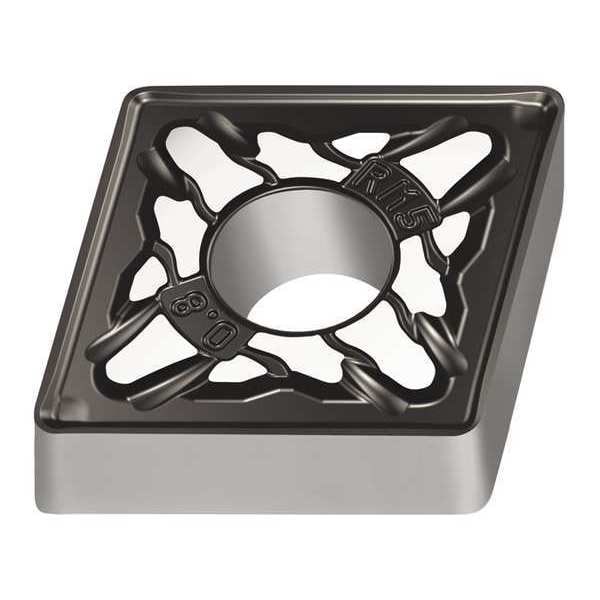

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 433 |
| Chip-Breaker | Yes |
| Grade | WSM30S |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMG120412-RM5 WSM30S |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | Yes |
| Insert Thickness | 0.188 in |
| Non Ferrous (N) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| Mounting Hole Dia. | 0.203 in |
| No. of Edges | 2 |
| Cast Iron (K) Compatibility | No |
| ANSI Number | CNMG434 |
| Nose Radius | 0.047 in |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Coating | PVD |
| Relief Angle | 0 Degrees |
| Mounting Style | Clamp |
| For Use With | Toolholders, Boring Bars |
| Super Alloy (S) Compatibility | Yes |
| Finish - Machining | TiAlN+Al2O3+Al |
| Included Angle | 80 Degrees |
| Material - Machining | Carbide |
| Cutting Edge Length | 12.9 mm |
| Insert Holding Type | Straight Hole |
| Thickness | 3 |
| Primary Material Application ISO Code | M, S |
| Number of Cutting Edges | 2 |
| Manufacturer Grade | WSM30S |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Depth of Cut | 1.5 to 5 mm |
| Shape | Rhombic |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | RM5 |
| ANSI Code | CNMG433-RM5 WSM30S |
| Cutting Application | Turning |
| Clearance Angle | 0 deg |
| Material | Carbide |
| Package Quantity | 1 |
