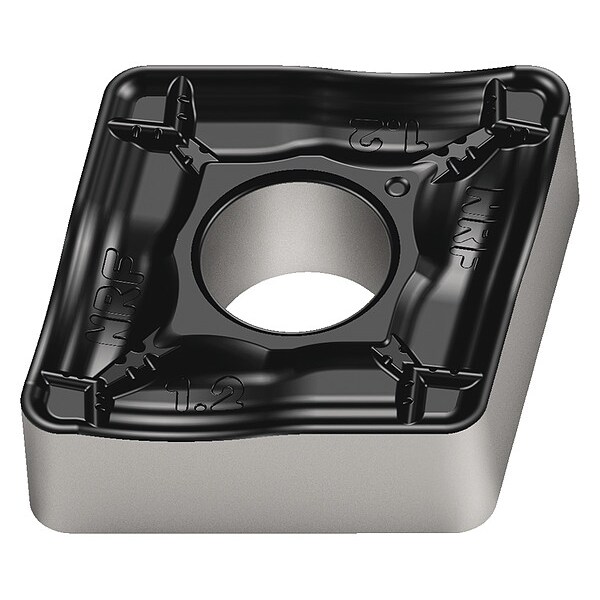

Diamond Turning Insert, Diamond, 4, CNMM, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMM |
| Inscribed Circle | 4 |
| Insert Size | 433 |
| Chip-Breaker | Yes |
| Grade | WPP10S |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMM120412-NRF WPP10S |
| Nose Radius | 0.047 in |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Relief Angle | 0 Degrees |
| Hardened (H) Compatibility | No |
| For Use With | Toolholders and Boring Bars |
| Super Alloy (S) Compatibility | No |
| Mounting Style | Screw Held |
| Cast Iron (K) Compatibility | No |
| ANSI Number | CNMM433-NRF |
| Workpiece Compatibility | Steel (P) |
| Coating | CVD |
| Cutting Direction | Neutral |
| Insert Thickness | 3/16 in |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Thickness | 3 |
| Manufacturer Grade | WPP10S |
| Finish - Machining | TiCN+Al2O3+TiCN |
| ANSI Code | CNMM433-NRF WPP10S |
| Primary Material Application ISO Code | P |
| Cutting Application | Turning |
| Measurement System | Fractional Inch |
| Primary Material Application | Steel |
| Shape | Rhombic |
| Insert Holding Type | Straight Hole |
| Included Angle | 80 Degrees |
| Number of Cutting Edges | 4 |
| Clearance Angle | 0 deg |
| Cutting Edge Length | 12.9 mm |
| Depth of Cut | 1.2 to 7 mm |
| Material - Machining | Carbide |
| Chip-Breaker Code | NRF |
| Material | Carbide |
| Application | Roughing |
| Style | CNMM |
| Package Quantity | 1 |
