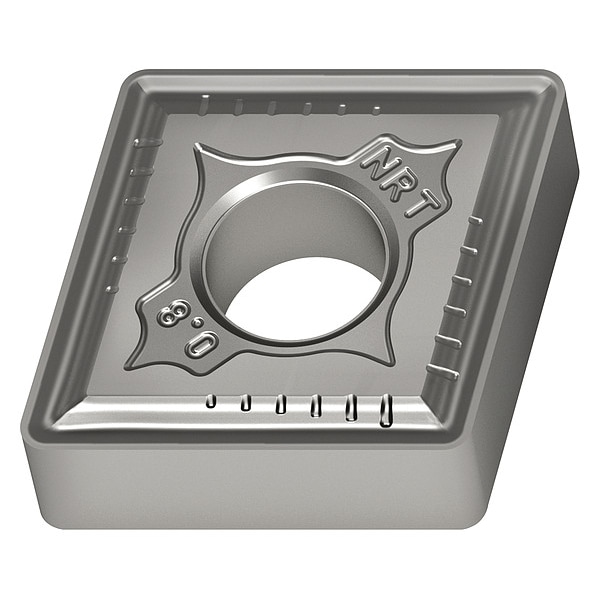

Diamond Turning Insert, Diamond, 5, CNMG, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 5 |
| Insert Size | 543 |
| Chip-Breaker | Yes |
| Grade | WS10 |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMG160612-NRT WS10 |
| Mounting Style | Screw Clamp |
| Nose Radius | 0.047 in |
| Cast Iron (K) Compatibility | No |
| Workpiece Compatibility | Super Alloy (S) |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | No |
| ANSI Number | CNMG543-NRT |
| No. of Edges | 4 |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Relief Angle | 0 Degrees |
| For Use With | Series A40V-DCLNL 5, A40V-DCLNR 5, DCLNL 16 5D, DCLNL 20 5D, DCLNR 16 5D, DCLNR 20 5D, A24T-DCLNL 5, A24T-DCLNR 5, A32U-DCLNL 5, A32U-DCLNR 5 |
| Stainless (M) Compatibility | No |
| Cutting Direction | Neutral |
| Coating | Uncoated |
| Insert Thickness | 1/4 in |
| Depth of Cut | 1.5 to 7.5 mm |
| ANSI Code | CNMG543-NRT WS10 |
| Cutting Application | Turning |
| Insert Holding Type | Straight Hole |
| Number of Cutting Edges | 4 |
| Primary Material Application | Titanium, Nickel |
| Material - Machining | Carbide |
| Included Angle | 80 Degrees |
| Finish - Machining | Bright |
| Manufacturer Grade | WS10 |
| Shape | Rhombic |
| Cutting Edge Length | 16.12 mm |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | NRT |
| Clearance Angle | 0 deg |
| Thickness | 4 |
| Primary Material Application ISO Code | S |
| Material | Carbide |
| Style | CNMG |
| Application | Roughing |
| Package Quantity | 1 |
