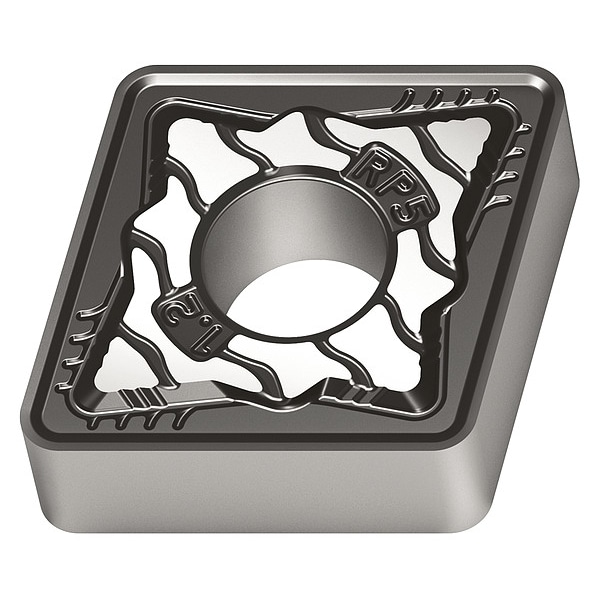

Diamond Turning Insert, Diamond, 6, CNMG, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 6 |
| Insert Size | 643 |
| Chip-Breaker | Yes |
| Grade | WPP10S |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMG190612-RP5 WPP10S |
| Coating | CVD |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| ANSI Number | CNMG643-RP5 |
| Insert Thickness | 1/4 in |
| Cutting Direction | Neutral |
| For Use With | Toolholders and Boring Bars |
| No. of Edges | 8 |
| Relief Angle | 0 Degrees |
| Workpiece Compatibility | Steel (P) |
| Stainless (M) Compatibility | No |
| Mounting Style | Screw Held |
| Nose Radius | 0.047 in |
| Super Alloy (S) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Insert Holding Type | Straight Hole |
| Number of Cutting Edges | 8 |
| Clearance Angle | 0 deg |
| Cutting Application | Turning |
| Included Angle | 80 Degrees |
| Manufacturer Grade | WPP10S |
| Primary Material Application | Steel |
| Cutting Edge Length | 19.34 mm |
| ANSI Code | CNMG643-RP5 WPP10S |
| Chip-Breaker Code | RP5 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Depth of Cut | 1.2 to 10 mm |
| Shape | Rhombic |
| Thickness | 4 |
| Primary Material Application ISO Code | P |
| Material | Carbide |
| Style | CNMG |
| Application | Roughing |
| Package Quantity | 1 |
