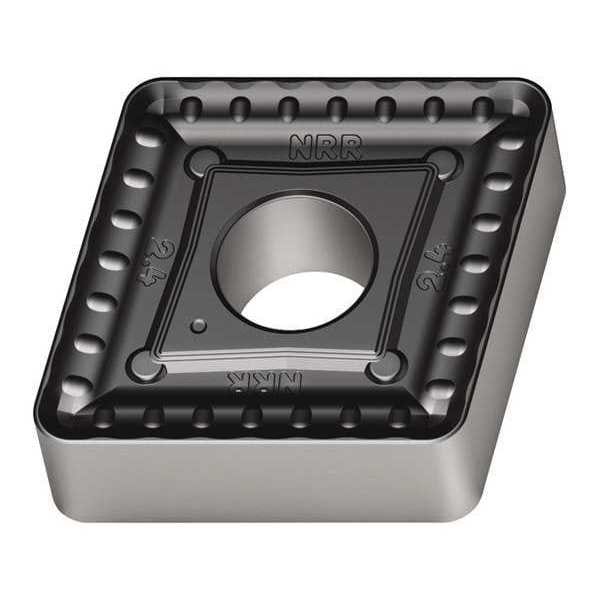

Diamond Turning Insert, Diamond, 6, CNMM, 6, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMM |
| Inscribed Circle | 6 |
| Insert Size | 646 |
| Chip-Breaker | Yes |
| Grade | WPP10S |
| Corner Radius | 6 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMM190624-NRR WPP10S |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Insert Thickness | 1/4 in |
| Coating | CVD |
| Non Ferrous (N) Compatibility | No |
| Relief Angle | 0 Degrees |
| For Use With | Toolholders, Boring Bars |
| No. of Edges | 2 |
| Nose Radius | 0.094 in |
| Super Alloy (S) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Mounting Style | Clamp |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| ANSI Number | CNMM644 |
| Mounting Hole Dia. | 0.312 in |
| Stainless (M) Compatibility | No |
| Shape | Rhombic |
| Thickness | 4 |
| Depth of Cut | 3 to 13 mm |
| Chip-Breaker Code | NRR |
| Clearance Angle | 0 deg |
| Number of Cutting Edges | 2 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Primary Material Application | Steel |
| Manufacturer Grade | WPP10S |
| Insert Holding Type | Straight Hole |
| Primary Material Application ISO Code | P |
| Material - Machining | Carbide |
| Cutting Application | Turning |
| ANSI Code | CNMM646-NRR WPP10S |
| Cutting Edge Length | 19.34 mm |
| Included Angle | 80 Degrees |
| Measurement System | Fractional Inch |
| Material | Carbide |
| Package Quantity | 1 |
