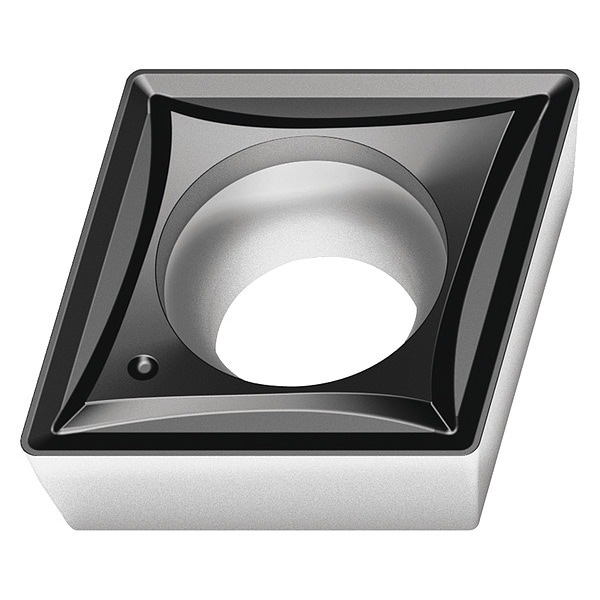

Diamond Turning Insert, Positive, Neutral, CCMT, 1/64", CarbideTiCN+Al2O3+(TiCN)
| Item | Diamond Turning Insert |
|---|---|
| Insert Style | CCMT |
| Chip-Breaker | Yes |
| ISO Number | CCMT09T304-E47 |
| Cutting Direction | Neutral |
| Rake | Positive |
| Corner Radius | 1 |
| Clearance Angle | 7 deg |
| Hole Type | With Hole |
| Shape | Diamond |
| Material - Machining | Carbide |
| Manufacturer Grade | WPP20S |
| Chip-Breaker Code | E47 |
| Included Angle | 80 deg |
| ANSI Code | CCMT09T304-E47 |
| Coating Process | CVD |
| Finish - Machining | TiCN+Al2O3+ |
| Package Quantity | 1 |
