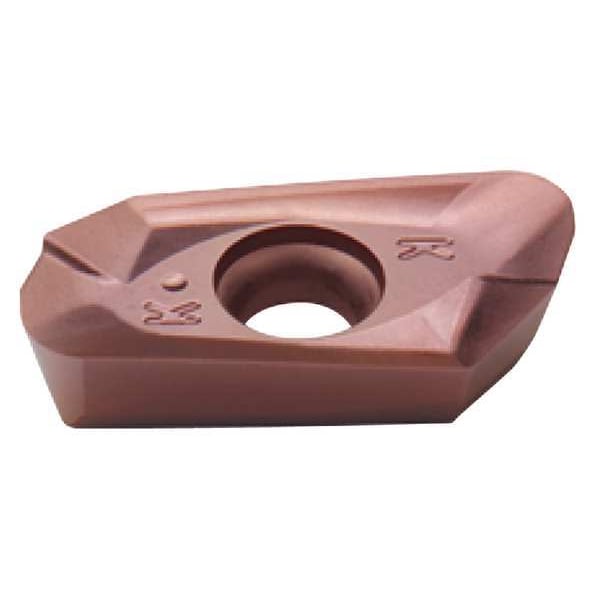

Diamond ZDGT Carbide
| Item | Diamond Milling Insert |
|---|---|
| Insert Style | ZDGT |
| Insert Shape | Diamond |
| Insert Size | 200,530 |
| Insert Material | Carbide |
| Corner Radius | 3..00mm |
| ANSI Number | ZDGT200530R-K85 WK10 |
| Inscribed Circle | 0.787 in |
| Non Ferrous (N) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| For Use With | Walter M2131/M2331 Ramping Milling Cutter |
| Steel (P) Compatibility | No |
| No. of Edges | 2 |
| Nose Radius | 0.118 in |
| Hardened (H) Compatibility | No |
| Insert Application | Finishing |
| Workpiece Compatibility | Nonferrous (N) |
| Mounting Style | Screw Held |
| Grade | WK10 |
| Cutting Direction | Right Hand |
| Super Alloy (S) Compatibility | No |
| Chip-Breaker | Yes |
| Rake | Positive |
| Stainless (M) Compatibility | No |
| Coating | Uncoated |
| Insert Thickness | 0.219 in |
| Cutting Edge Length | 21.2 mm |
| Chip-Breaker Code | K85 |
| Wiper Insert | Yes |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Finish - Machining | Bright |
| Secondary Material Application ISO Code | P, K |
| Shape | Z |
| Thickness | 0.219 in |
| Measurement System | Metric |
| Chip-Breaker Style | 25 deg (Chipbreaker Groove) |
| Primary Material Application ISO Code | N |
| Material - Machining | Carbide |
| Number of Cutting Edges | 2 |
| Manufacturer Grade | WK10 |
| Cutting Application | Finishing |
| Secondary Material Application | Cast Iron, Steel |
| Clearance Angle | 15 deg |
| Hole Type | Countersink Hole |
| ANSI Code | ZDGT200530R-K85 WK10 |
| Width | 14 mm |
| Insert Holding Type | Screw Held |
| ISO Number | ZDGT200530R-K85 WK10 |
| Package Quantity | 1 |
