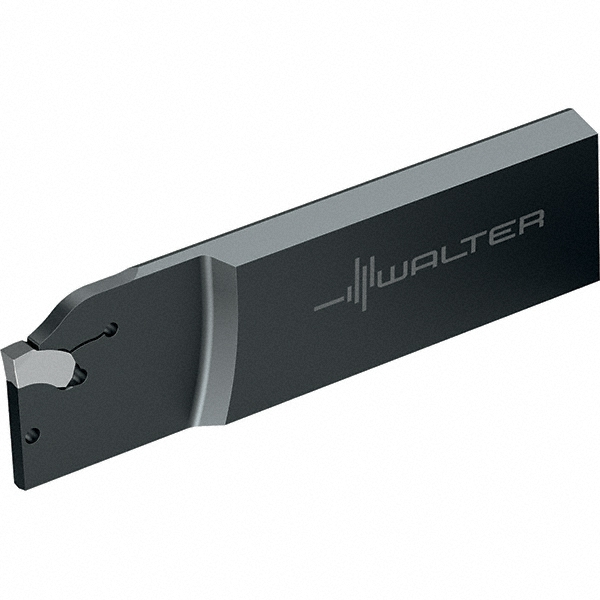

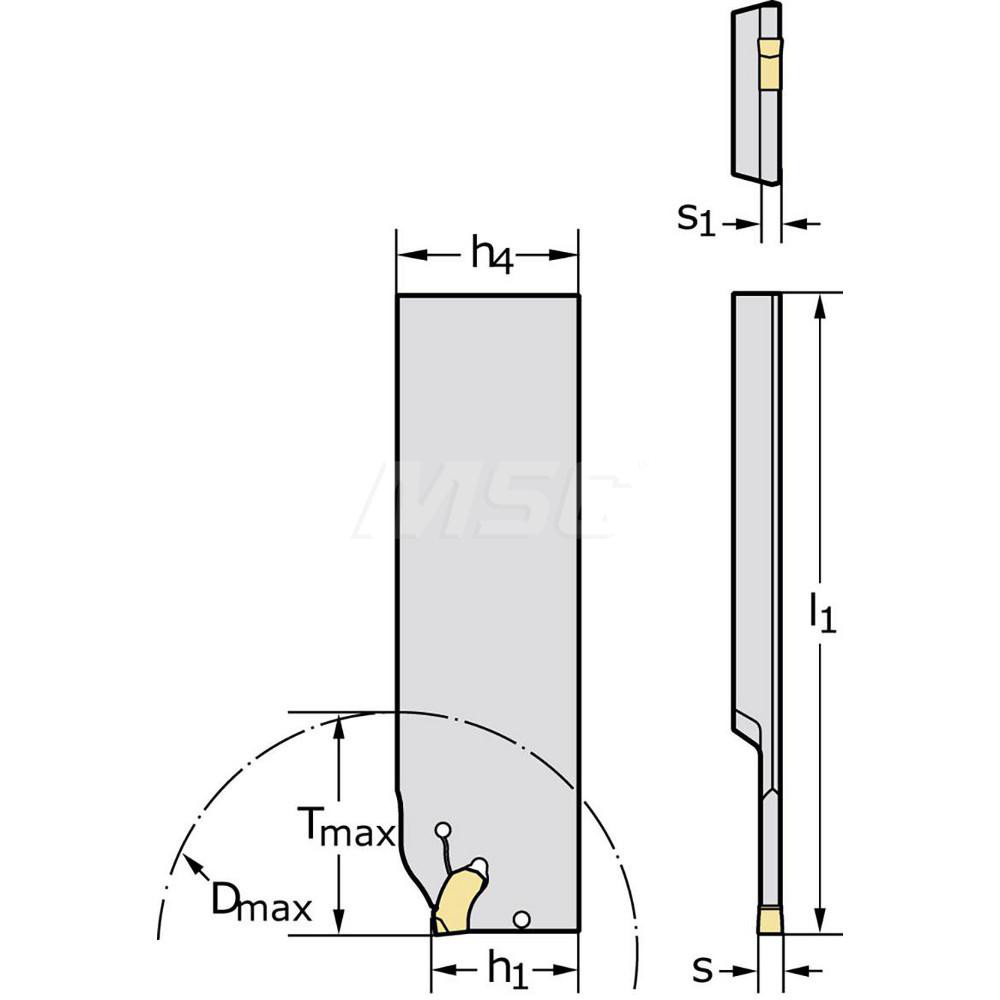

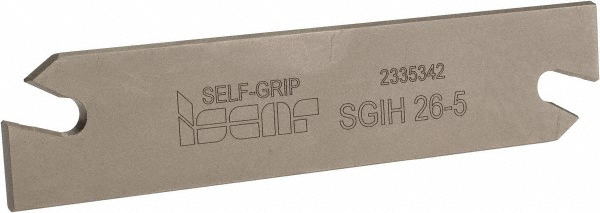

26mm High, 1.5mm Insert Width
| End Type | Single |
|---|---|
| Cutting Direction | Right Hand |
| Hand | Right Hand |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 1.20 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | G2042 |
| Compatible Insert Style | SX |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (mm) | 40.00 |
| Tool Block Style | SBN |
| Insert Style | SX-1.5.. |
| Cutting Tool Application | Grooving; Parting |
| Insert Width (mm) | 1.50 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Standards | ISO |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Insert Width (Decimal Inch) | 0.0591 |
| Minimum Insert Width (mm) | 1.50 |
| Complete Tool Block/Toolholder Style Compatibility | SBN20-32K-E; SBN3229-46-K; SBN16-32-K-E; SBN16-32KS-E; SBN2020-26-K; SBN20-46K-E; SBN12-26K-E; SBN20-32KS-E; SBN2520-32-K; SBN4037-46-K; SBN12-26KS-E; SBN3229-32-K |
| Insert Width | 0.0591 |
| UNSPSC Code | 23241600 |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 53078317 |
