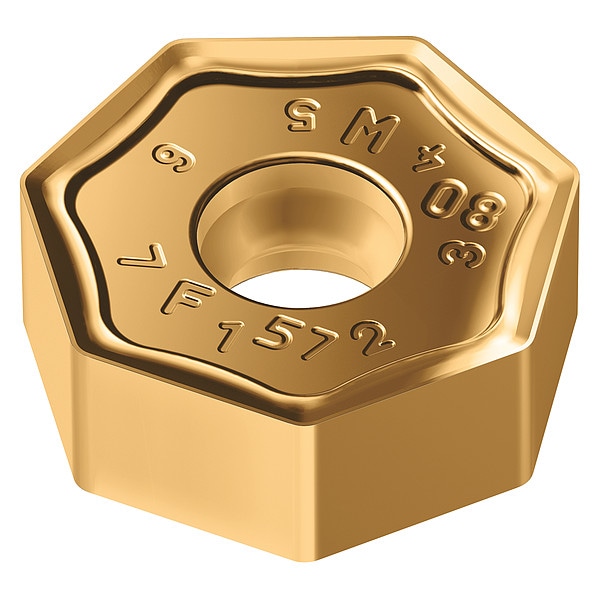

Heptagon Milling Insert, 0.5710 in, XNMU, 1/32 in
| Item | Heptagon Milling Insert |
|---|---|
| Insert Style | XNMU |
| Inscribed Circle | 0.571 in |
| Insert Size | 705 |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Negative |
| ISO Number | XNMU0705ANN-F27 |
| Chip-Breaker Code | F27 |
| Shape | Heptagon |
| Finish - Machining | TiAlN+TiN |
| Cutting Edge Length | 6.98 mm |
| Thickness | 0.197 in |
| Manufacturer Grade | WKP35G |
| Number of Cutting Edges | 7 |
| For Toolholder | Walter BLAXX |
| ANSI Code | XNMU0705ANN-F27 |
| Clearance Angle | 0 deg |
| Package Quantity | 1 |
